EB-A2 04-08W06E57 IC08
SOLIDECO - economical type 2 flute, 30° helix ball nose solid carbide endmills.

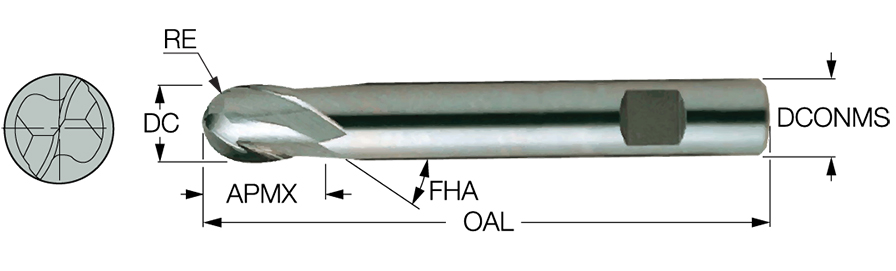

| Cutting Diameter (DC) | 4 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 2 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 57 mm | Grade | IC08 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Unit | M |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | SOLIDECO - economical type 2 flute, 30° helix ball nose solid carbide endmills. | FamilyName | EB-A2 (economical) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0230
Name
Ballnose End Mills
FamilyName
EB-A2 (economical)
BrandName
Iscar
