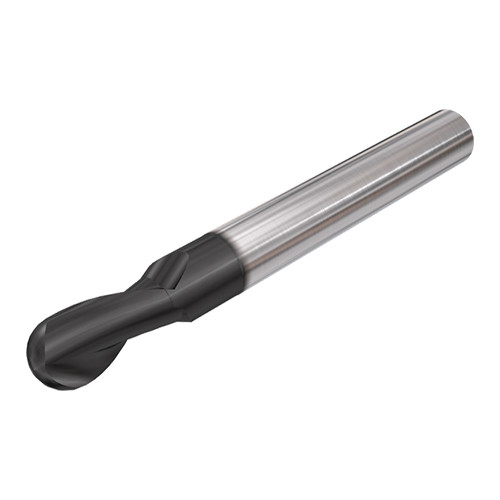

EB-A2 05-12C06M80 IC903
2 flute, 30° helix long solid carbide ball nose endmills with relieved necks for materials up to 65 HRC

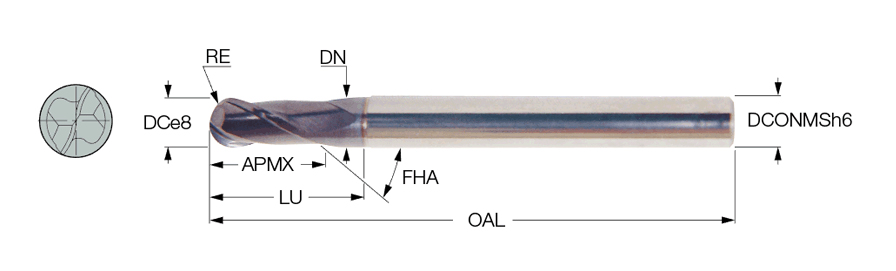

| Cutting Diameter (DC) | 5 mm | Corner Radius (RE) | 2.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Overall Length (OAL) | 80 mm | Grade | IC903 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Application | | Profiling | |
Product Features
| Family Description | 2 flute, 30° helix long solid carbide ball nose endmills with relieved necks for materials up to 65 HRC | FamilyName | EB-A2 (long with neck) |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
0.0320
Name
Ballnose End Mills
FamilyName
EB-A2 (long with neck)
BrandName
Iscar
