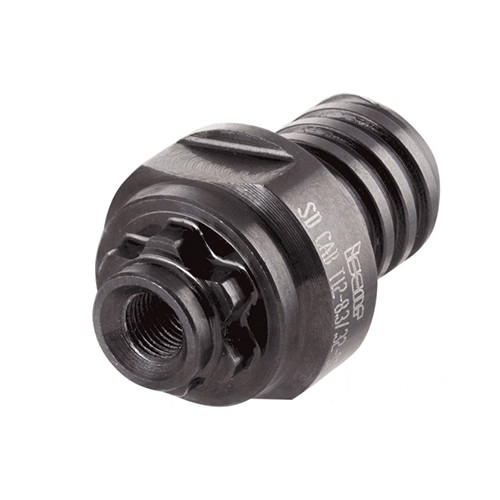

SD CAB T15-14/0.55-SP17
Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks.

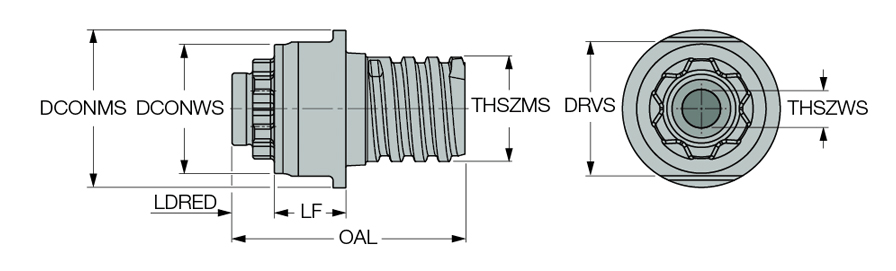

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Drive Size (DRVS) | 20 mm |
| Overall Length (OAL) | 37 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 6 mm | Body Material | Steel |
| Tool Type | Interchangeable Milling Connectors | Unit | M |
| Body Diameter (BD) | 17 mm |
Product Features
| Family Description | Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks. | FamilyName | SD CAB |

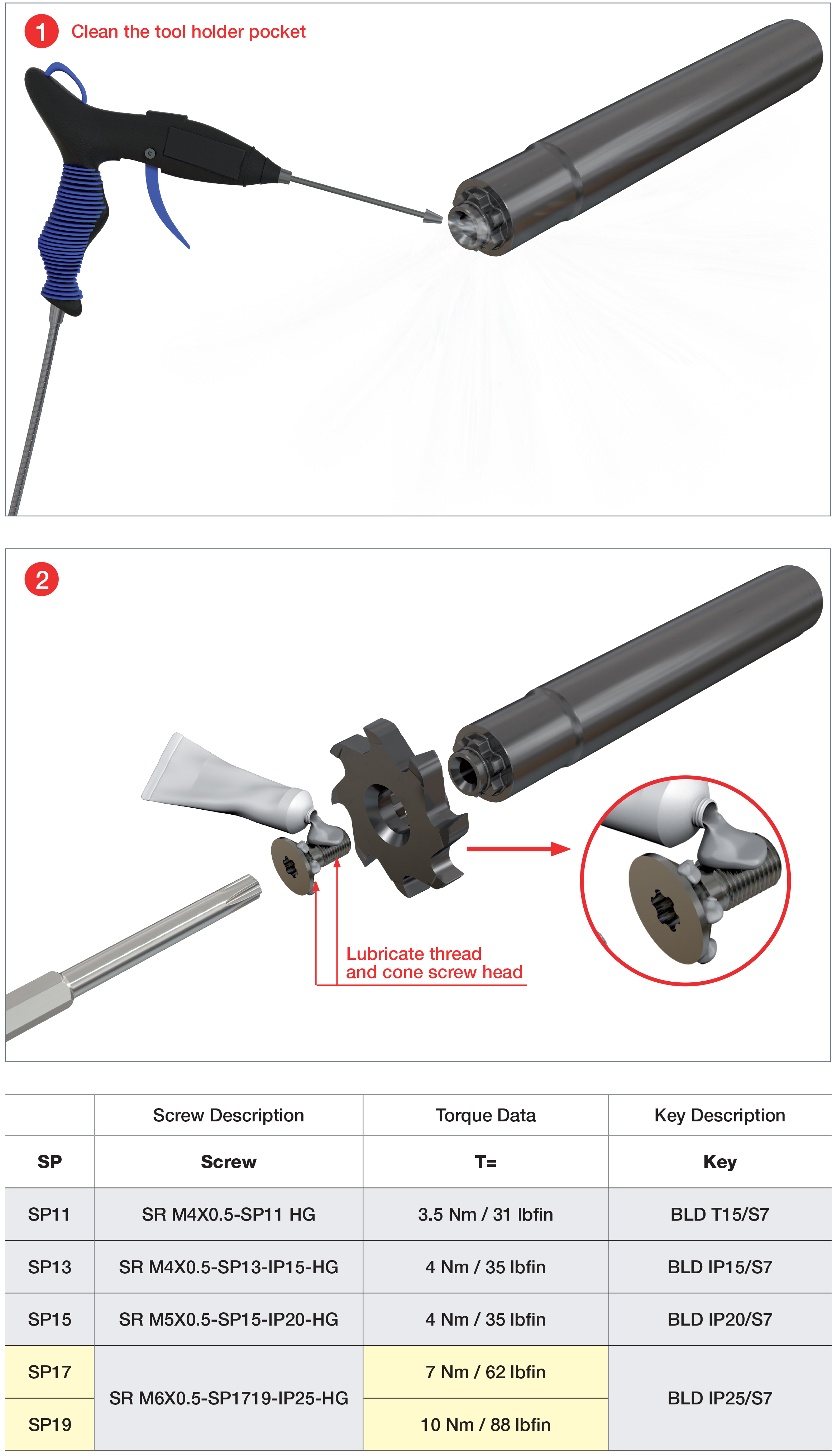

| Remarks | Apply lubricant to the screw head and threads | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1700
Name
Solid End Mill Shanks
FamilyName
SD CAB
BrandName
Iscar
