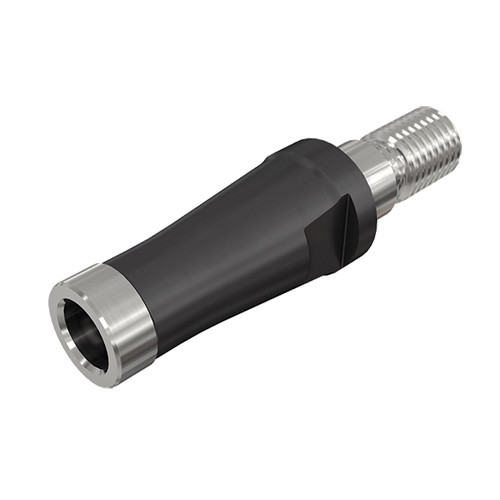

CAB M16M16-C
Reducers and extensions with coolant holes for the modular FLEX-FIT system.

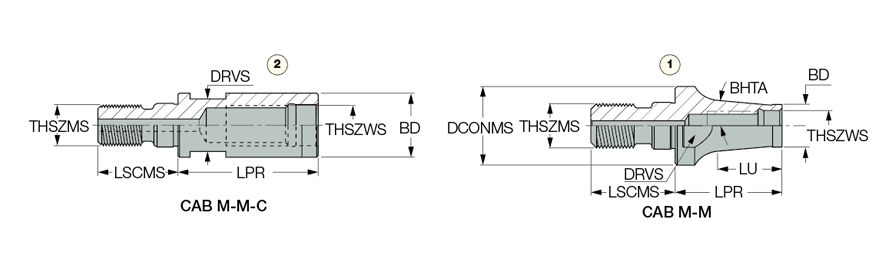

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Overall Length (OAL) | 40 mm | Drive Size (DRVS) | 25 mm |
| Clamping Length Machine Side (LSCMS) | 25 mm | Measurement Type | Metric |
| Tool Type | Unique Adapter Milling System | Body Material | Steel |
| Body Diameter (BD) | 29 mm | Unit | M |
Product Features
| Family Description | Reducers and extensions with coolant holes for the modular FLEX-FIT system. | FamilyName | CAB M-M (FLEX-FIT) |
| Remarks | For adaptation options click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1970
Name
Solid End Mill Shanks
FamilyName
CAB M-M (FLEX-FIT)
BrandName
Iscar
