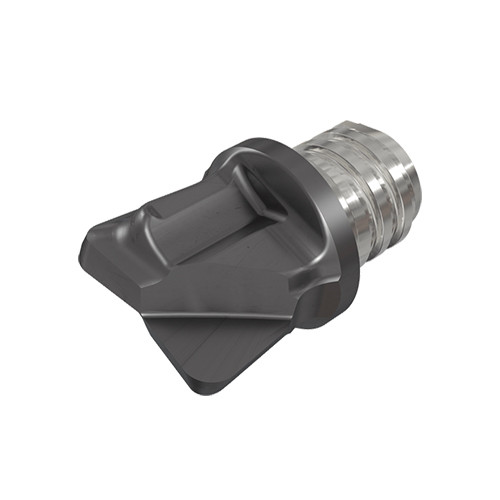

MM HT120N06R2.0-2T08 IC903
Interchangeable 2 flute torodial solid carbide milling heads
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | Undercutting | | Grade | IC903 |

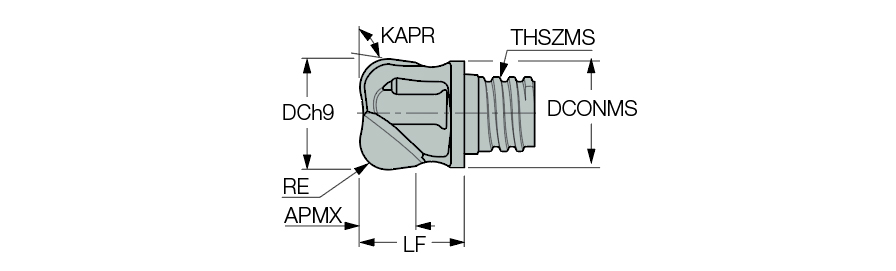

| Cutting Diameter (DC) | 12 mm | Coating | AlTiN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 2 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 5.9 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm | Body Material | Carbide |
| Functional Length (LF) | 11.1 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 19.05 mm | Unit | M |
Product Features
| Family Description | Interchangeable 2 flute torodial solid carbide milling heads | FamilyName | MM HT |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0210
Name
Solid End Mill Heads
FamilyName
MM HT
BrandName
Iscar
