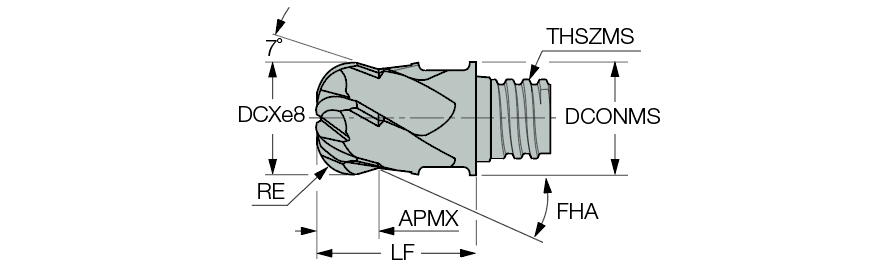

| Application | | Helical Interpolation | Profiling | Rampdown | Slotting | | Overall Length (OAL) | 24.45 mm |
| Cutting Diameter (DC) | 12 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 4 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Ramping Angle Maximum (RMPX) | 9 Degrees |
| Cutting Diameter Maximum (DCX) | 12 mm | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 9 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 16.5 mm | Unit | M |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features

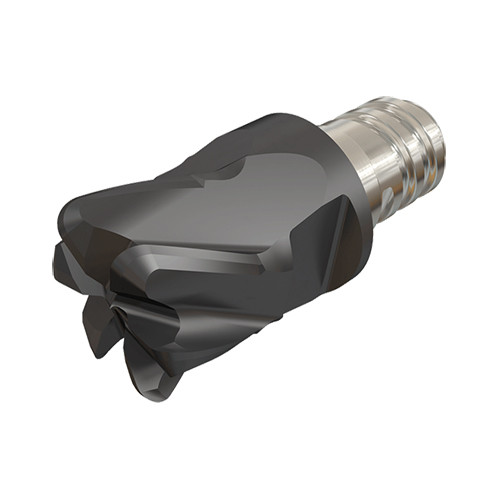

| Family Description | Interchangeable 6 flute torodial solid carbide milling heads | FamilyName | MM ETR |
| Remarks | For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0305
Name
Solid End Mill Heads
FamilyName
MM ETR
BrandName
Iscar
