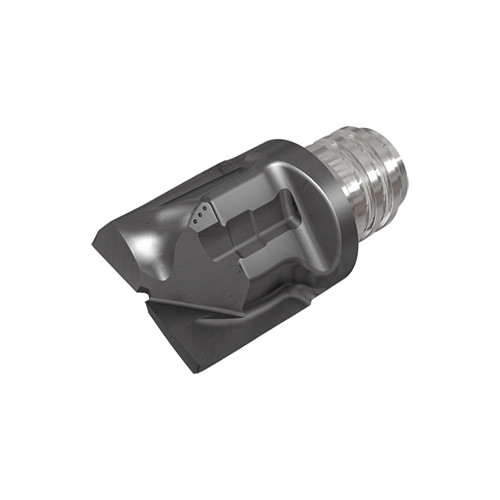

MM HC.500C55R016-2T08 IC908
MULTI-MASTER, interchangeable, solid carbide slot drill milling heads with two 10° helix flutes. Available with a variety of corner radii (economical type)
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC908 |

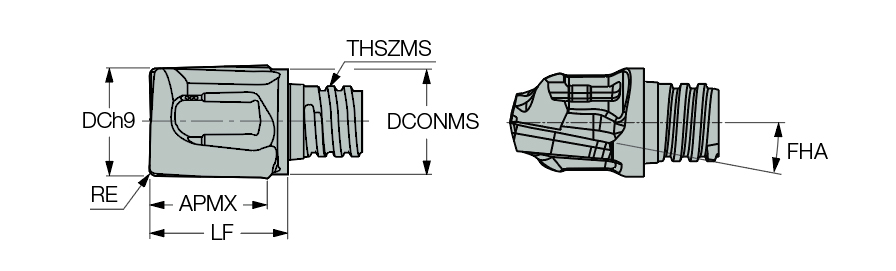

| Cutting Diameter (DC) | 1/2″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.016″ | Maximum Feed per Tooth (fz(max)) | 0.0043 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.433″ | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Body Material | Carbide |
| Functional Length (LF) | 0.6″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 10 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Overall Length (OAL) | 0.913″ | Unit | I |
Product Features
| Family Description | MULTI-MASTER, interchangeable, solid carbide slot drill milling heads with two 10° helix flutes. Available with a variety of corner radii (economical type) | FamilyName | MM HC |

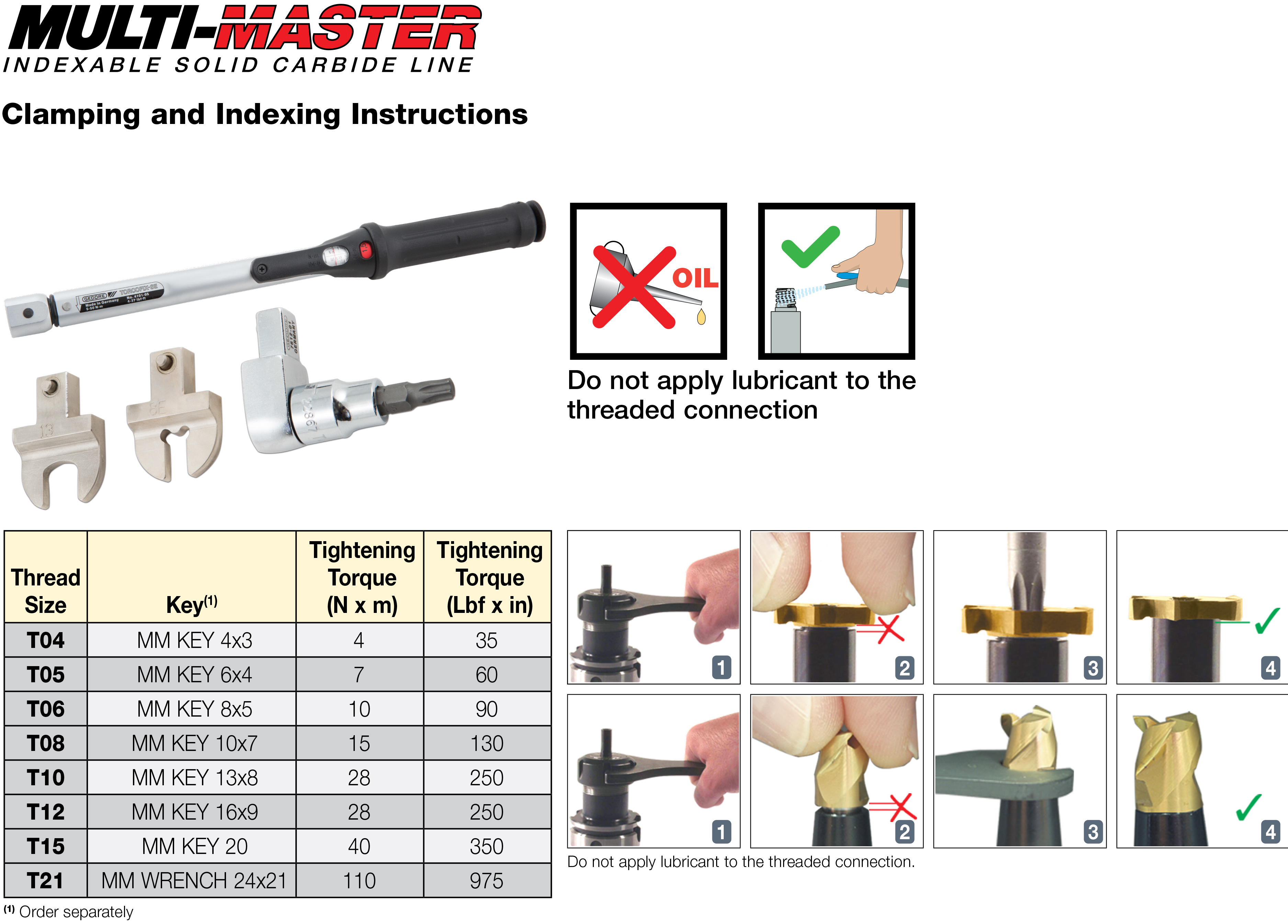

| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0540
Name
Solid End Mill Heads
FamilyName
MM HC
BrandName
Iscar
