MM HCR100-2T06 IC908
MULTI-MASTER interchangeable solid carbide 2 flute, ball nose milling heads

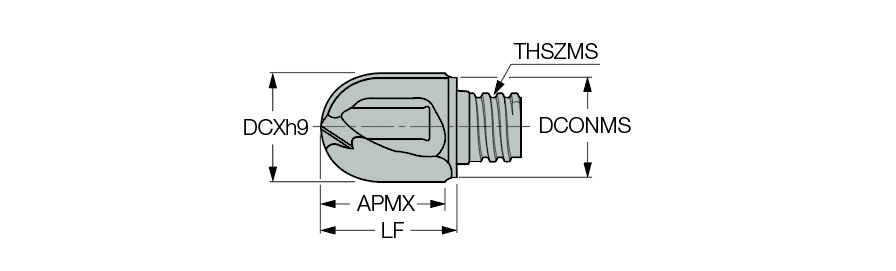

| Application | | Profiling | | Overall Length (OAL) | 19 mm |
| Cutting Diameter (DC) | 10 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 10 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 12.35 mm | Unit | M |
| Flute Helix Angle (FHA) | 5 Degrees |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide 2 flute, ball nose milling heads | FamilyName | MM HCR |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0185
Name
Solid End Mill Heads
FamilyName
MM HCR
BrandName
Iscar
