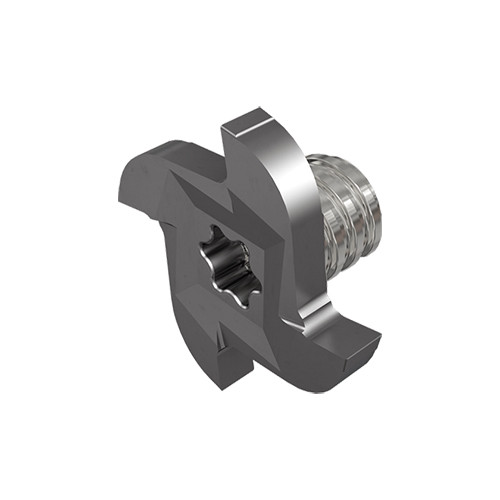

MM GRIT22K317-020-4T8 IC908
MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron.

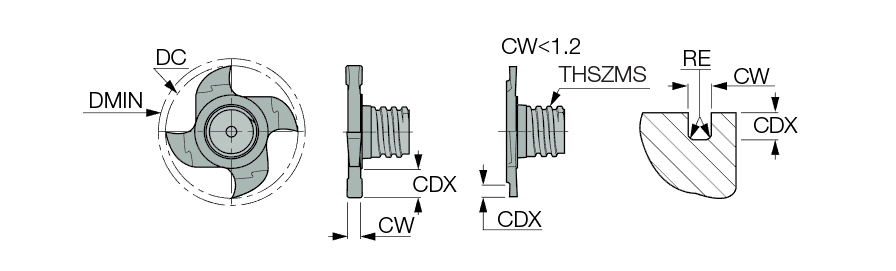

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 11.27 mm |
| Cutting Diameter (DC) | 21.7 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.2 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 4.5 mm | Body Material | Carbide |
| Cutting Width (CW) | 3.17 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Connection Diameter Machine Side (DCONMS) | 0 mm | Unit | M |
| Functional Length (LF) | 0 mm |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron. | FamilyName | MM GRIT-4T8/6T10 |
| Remarks | Recommended for O-rings and retaining rings K - for general steel & cast iron machining P - for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection For clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0215
Name
Solid End Mill Heads
FamilyName
MM GRIT-4T8/6T10
BrandName
Iscar
