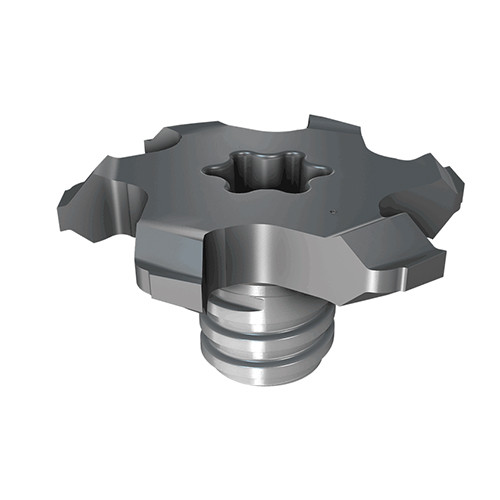

MM TS127C118T050-6T05 IC928
Interchangeable solid carbide groove milling heads for standard circlips conform to DIN 471/472.

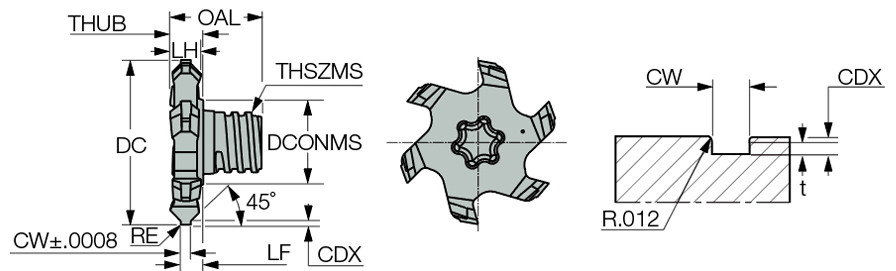

| Application | | Internal Groove Milling | | Functional Length (LF) | 2.23 mm |
| Cutting Diameter (DC) | 12.7 mm | Overall Length (OAL) | 8.43 mm |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Flute Count (NOF) | 6 | Coating | TiAlN |
| Corner Radius (RE) | 0.05 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.5 mm | Body Material | Carbide |
| Cutting Width (CW) | 1.18 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 7.7 mm |
Product Features
| Family Description | Interchangeable solid carbide groove milling heads for standard circlips conform to DIN 471/472. | FamilyName | MM TS-C |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0110
Name
Solid End Mill Heads
FamilyName
MM TS-C
BrandName
Iscar
