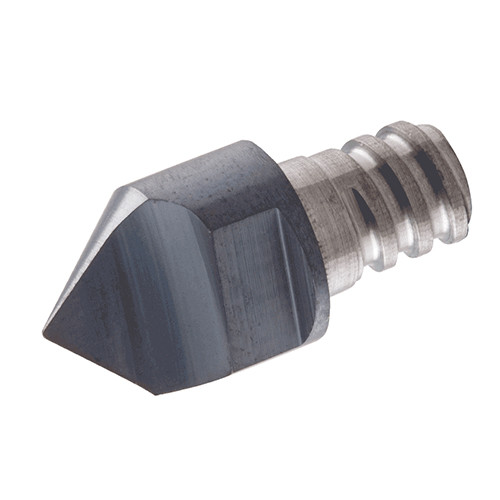

MM EPG080/90-F32-1T05 IC908
Single flute MULTI-MASTER engraving tool head.
| Application | | Engraving | | Coating | TiAlN |
| Cutting Diameter (DC) | 8 mm | Profile Angle (PRFA) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 1 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Tool Type | Solid chamfering endmills |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Body Material | Carbide |
| Functional Length (LF) | 10 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 17.1 mm | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Single flute MULTI-MASTER engraving tool head. | FamilyName | MM EPG |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0130
Name
Solid End Mill Heads
FamilyName
MM EPG
BrandName
Iscar
