EPXI-F6 375-750C375F3. IC02

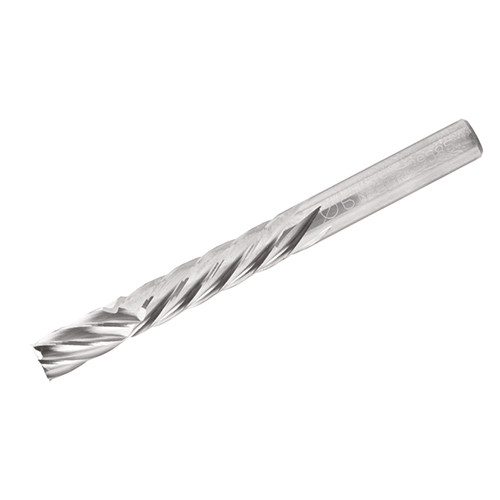

Solid carbide endmill with right- and left-hand helix flutes, enables Changing Direction at Mid Cutting Height for machining laminated stock of different types of composite materials.
| Cutting Diameter (DC) | 3/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | IC02 |
| Depth of Cut Maximum (APMX) | 0.326″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.0023 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0007 ″/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 3/4″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Edging | Shouldering | | Unit | I |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | Solid carbide endmill with right- and left-hand helix flutes, enables Changing Direction at Mid Cutting Height for machining laminated stock of different types of composite materials. | FamilyName | EPXI |

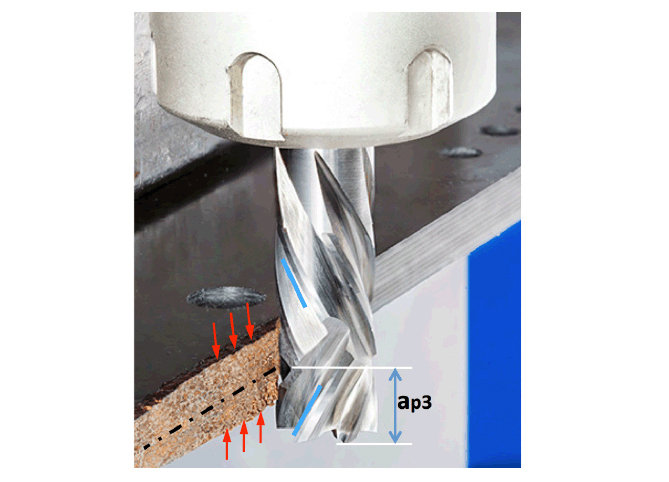

| Remarks | Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height Coated tools available on request | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1698
Name
Square & Corner Radius End Mills
FamilyName
EPXI
BrandName
Iscar
