EPX-F8 12-24C12F83 IC02

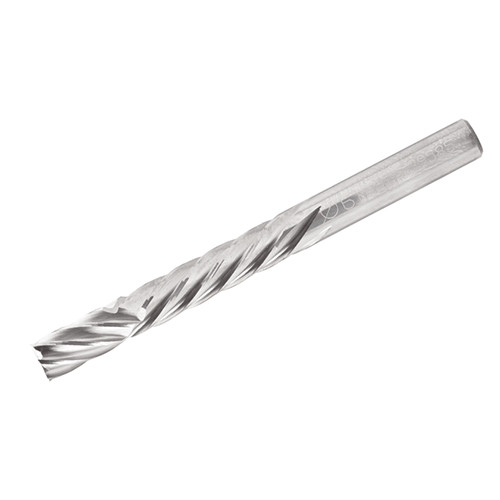

Solid carbide endmill with right- and left-hand helix flutes enables changing direction at mid cutting height for machining laminated stock of different types of composite materials.

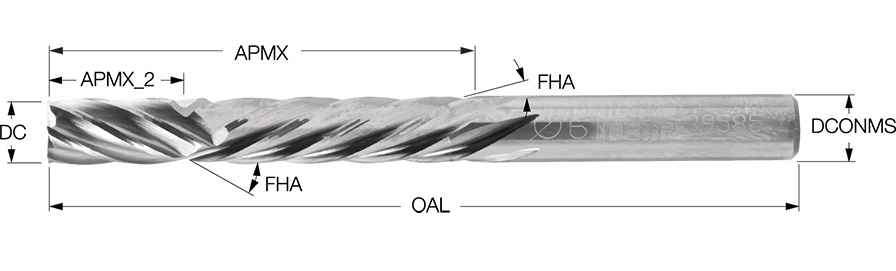

| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 10.6 mm | Grade | IC02 |
| Overall Length (OAL) | 83 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Count (NOF) | 8 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 10.6 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Edging | Shouldering | | Unit | M |
Product Features
| Family Description | Solid carbide endmill with right- and left-hand helix flutes enables changing direction at mid cutting height for machining laminated stock of different types of composite materials. | FamilyName | EPX |

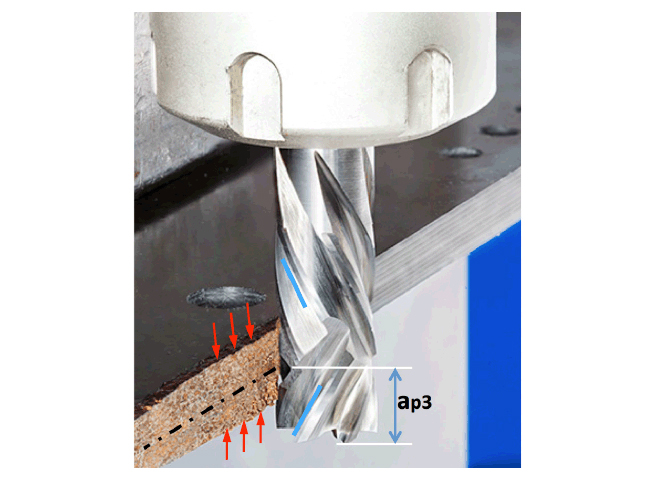

| Remarks | Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height Coated tools available on request | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1300
Name
Square & Corner Radius End Mills
FamilyName
EPX
BrandName
Iscar
