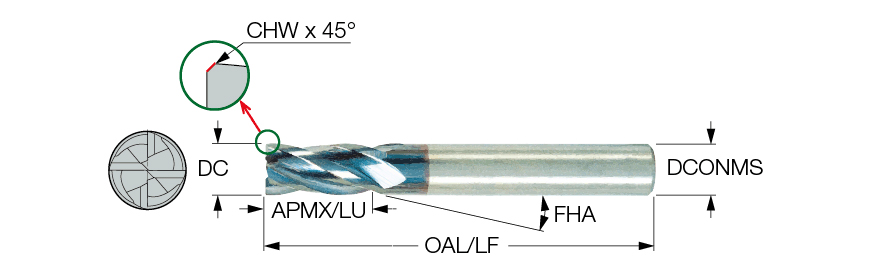

| Cutting Diameter (DC) | 3/4″ | Corner Chamfer Width (CHW) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IC900 |
| Overall Length (OAL) | 4″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.75″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
Product Features
| Family Description | 4 flute, 30° helix, medium length, solid carbide endmills with chamfered corners. | FamilyName | ECCI-A-4 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.8201
Name
Square & Corner Radius End Mills
FamilyName
ECCI-A-4
BrandName
Iscar
