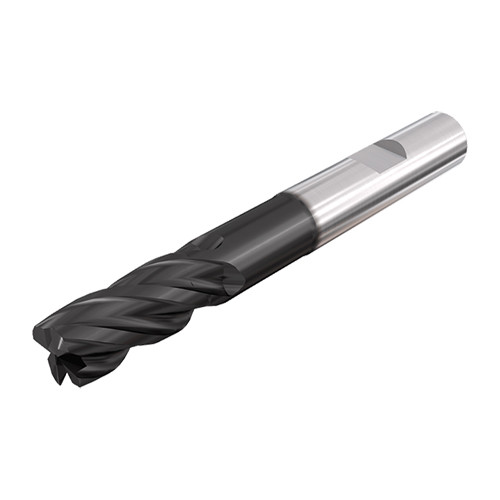

EC-H4L 12-26/50W12CFR.5C IC900
4 flute long endmills with different helix (35° & 37°) and variable pitch for chatter dampening . Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD.

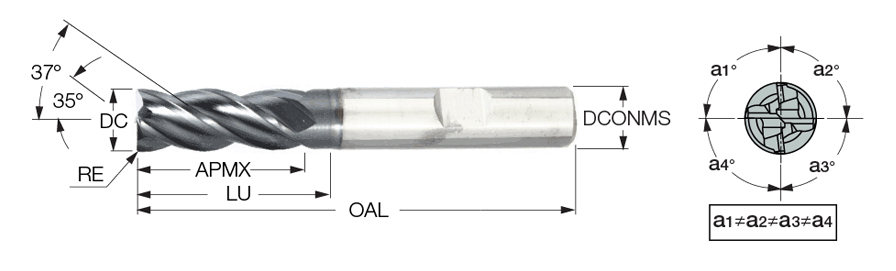

| Cutting Diameter (DC) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 26 mm | Neck Diameter (DN) | 11.7 mm |
| Overall Length (OAL) | 95 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 50 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0.5 mm | Unit | M |
Product Features
| Family Description | 4 flute long endmills with different helix (35° & 37°) and variable pitch for chatter dampening . Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. | FamilyName | EC-H4-L/M/XL-CFR |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
0.1350
Name
Square & Corner Radius End Mills
FamilyName
EC-H4-L/M/XL-CFR
BrandName
Iscar
