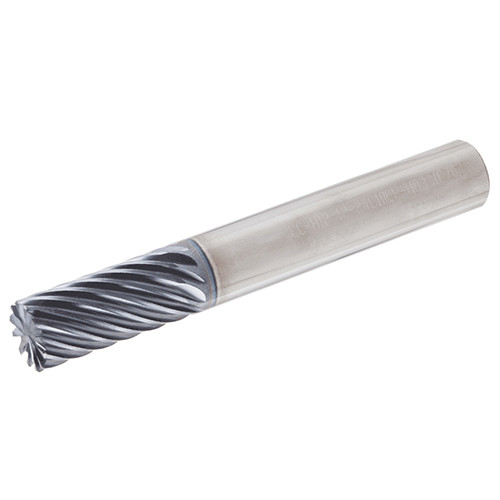

ECI-H20 750-1.50SL750CFH5 IC902
6-20 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing operations.

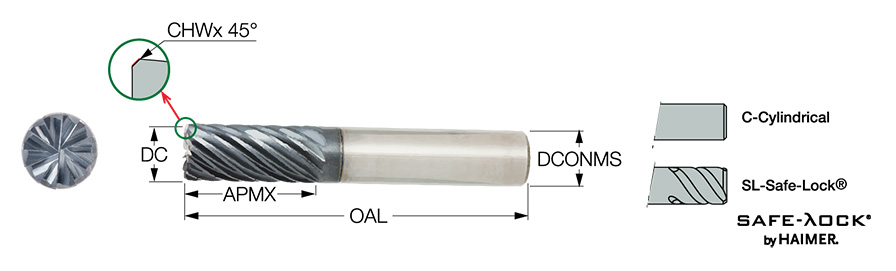

| Cutting Diameter (DC) | 3/4″ | Corner Chamfer Width (CHW) | 0.012″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Grade | IC902 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.0051 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 20 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | SL | Measurement Type | Inch |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1-1/2″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Shouldering | | Unit | I |
Product Features
| Family Description | 6-20 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing operations. | ItemRemark | Safe-Lock® by Haimer, helical grooves that prevent pull-out |
| Remarks | Can machine at radial width of cut (AE) of up to 0.06xDC | FamilyName | ECI-H-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECI-H-CF
BrandName
Iscar
