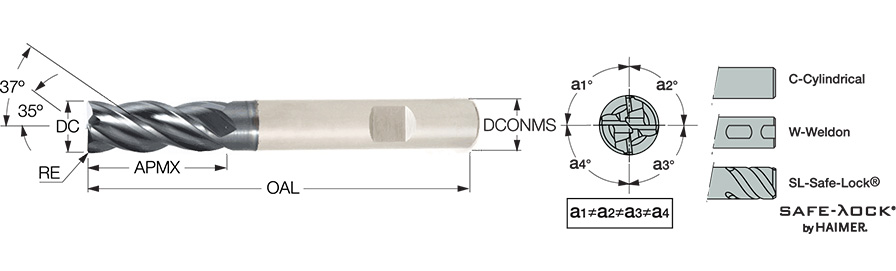

| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IC900 |

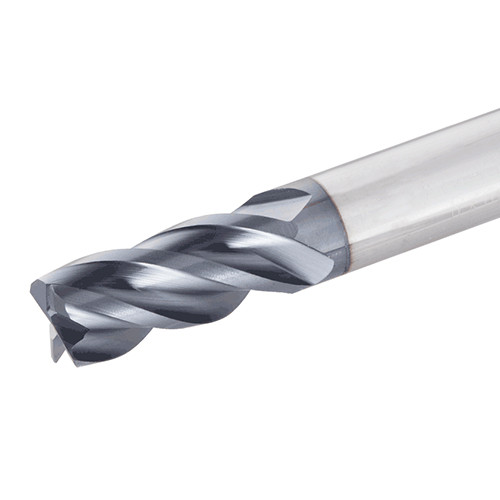

| Overall Length (OAL) | 3″ | Tool Type | Solid carbide center cutting endmills 90° |

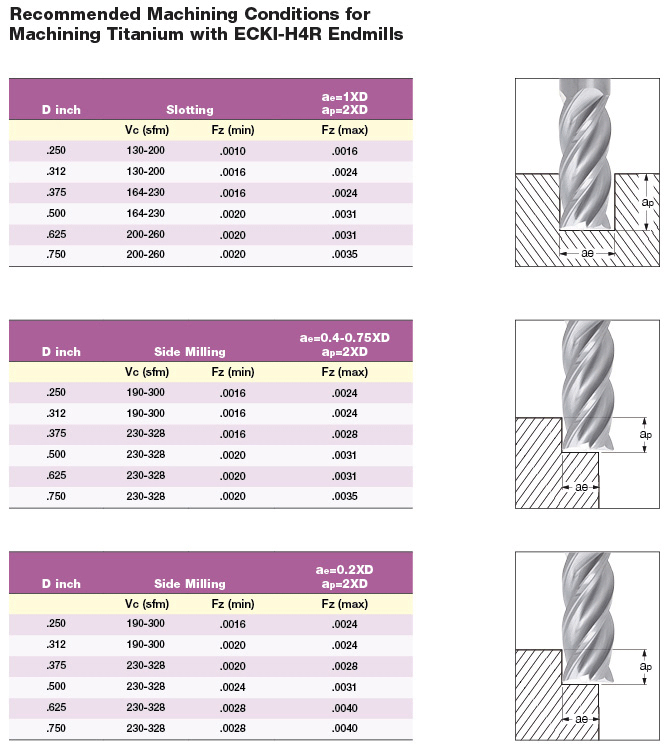

| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0031 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 36 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter damping with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD. | FamilyName | ECKI-H4R-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2646
Name
Square & Corner Radius End Mills
FamilyName
ECKI-H4R-CF
BrandName
Iscar
