ECI-H7 375-1.5C375CF-4 IC902
7 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing perations.
| Cutting Diameter (DC) | 3/8″ | Corner Chamfer Width (CHW) | 0.012″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IC902 |
| Overall Length (OAL) | 4″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Flute Count (NOF) | 7 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Application | | Helical Interpolation | Rampdown | Shouldering | |
Product Features
| Family Description | 7 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing perations. | FamilyName | ECI-E7/H7-CF |

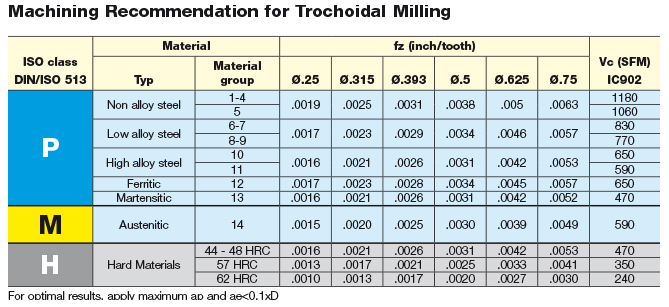

| Remarks | Can machine at radial width of cut (ae) of up to 0.10xDC For detailed cutting recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2227
Name
Square & Corner Radius End Mills
FamilyName
ECI-E7/H7-CF
BrandName
Iscar
