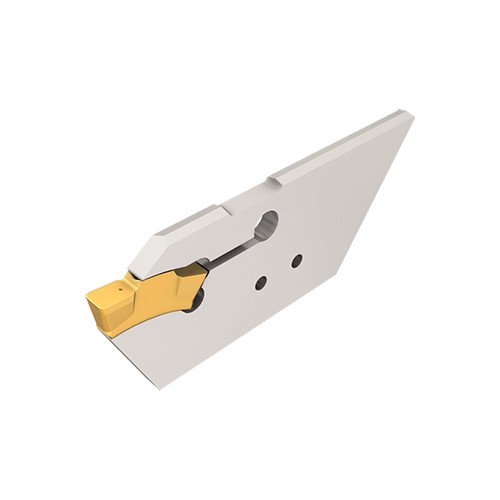

TGHN 26-3M
Internal machining blades for TOP-GRIP utility grooving and turning inserts.

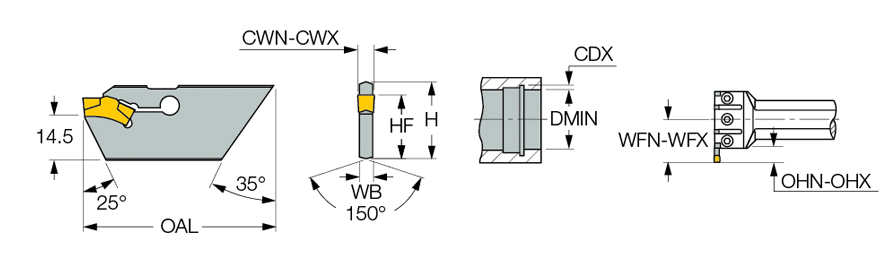

| Cutting Width Minimum (CWN) | 3 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Cutting Width Maximum (CWX) | 3 mm | Body Material | Steel |
| Shank Height (H) | 26 mm | Tool Type | Turn-Groove Tools |
| Minimum Bore Diameter (DMIN) | 70 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Unit | M |
Product Features
| Family Description | Internal machining blades for TOP-GRIP utility grooving and turning inserts. | FamilyName | TGHN 26-M |

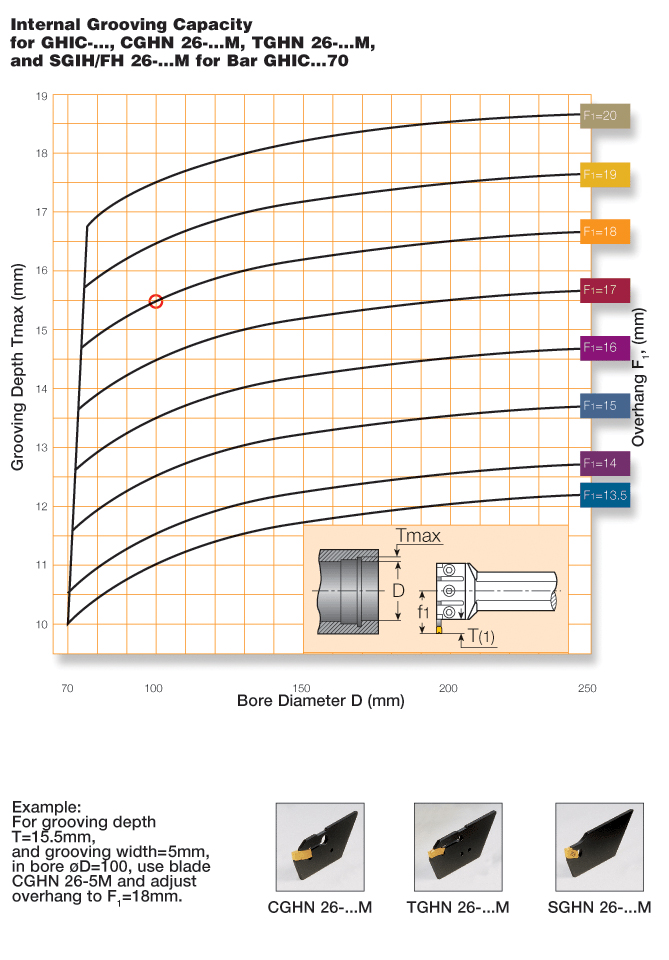

| Remarks | Grooving depth (CDX) varies in conformance with blade's overhang (WFN-WFX and depends on the bore diameter (D) For grooving capacity, click More Info TGHN 26...-M can be modified from external double-sided TGHN blades | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0300
Name
Groove/Turn Indexable Holders
FamilyName
TGHN 26-M
BrandName
Iscar
