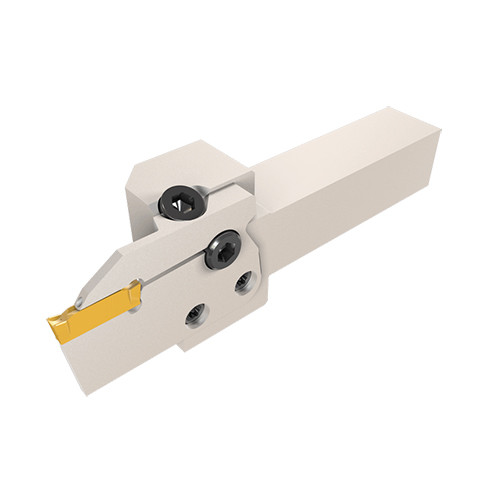

MAHR 20-JHP-MC
Holders with Bottom Inlets for high-pressure coolant channels carrying MODULAR-GRIP adapters. The holders were designed to be clamped in VDI shank tool holders with bottom coolant-fed tools.

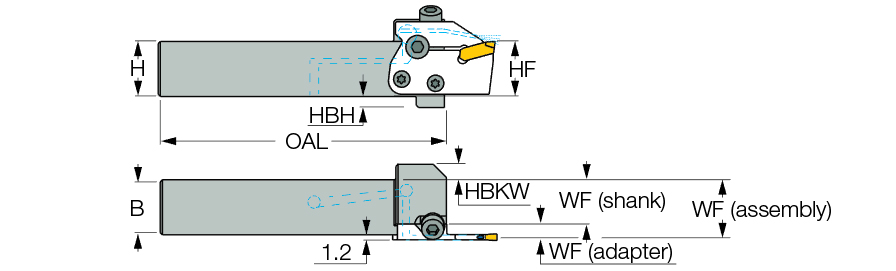

| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Blocks for blades |
| Functional Width (WF) | 14 mm | Measurement Type | Metric |
| Overall Length (OAL) | 98 mm | Unit | M |
Product Features
| Family Description | Holders with Bottom Inlets for high-pressure coolant channels carrying MODULAR-GRIP adapters. The holders were designed to be clamped in VDI shank tool holders with bottom coolant-fed tools. | FamilyName | MAHR/L-JHP-MC |
| Remarks | For CDX, refer to the adapters data. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4650
Name
Groove/Turn Indexable Holders
FamilyName
MAHR/L-JHP-MC
BrandName
Iscar
