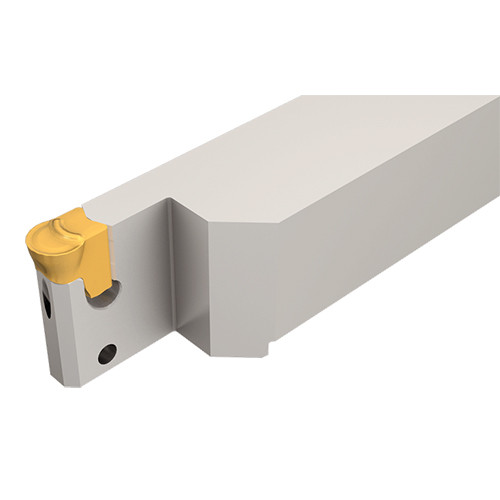

TGBHR 25C-10
SUMO-GRIP tools with very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life.

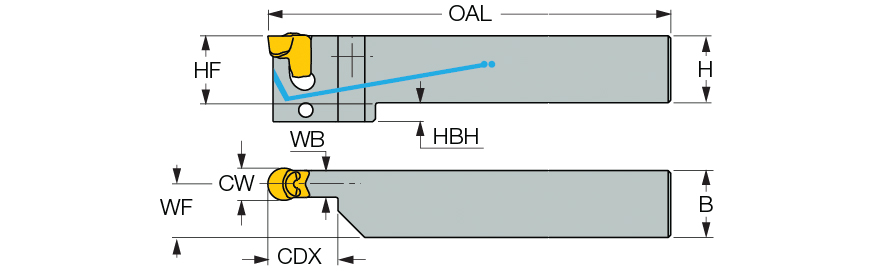

| Cutting Width Minimum (CWN) | 9.5 mm | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 10 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 25 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Functional Width (WF) | 21 mm | Unit | M |
Product Features
| Family Description | SUMO-GRIP tools with very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life. | FamilyName | TGBHR/L |

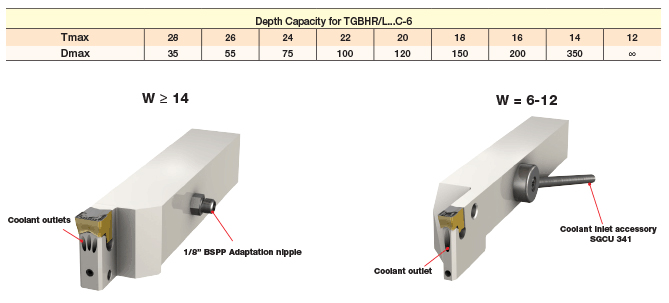

| Remarks | The tools for the 14 mm inserts feature a 1/8 port thread for standard tube fittings | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7060
Name
Groove/Turn Indexable Holders
FamilyName
TGBHR/L
BrandName
Iscar
