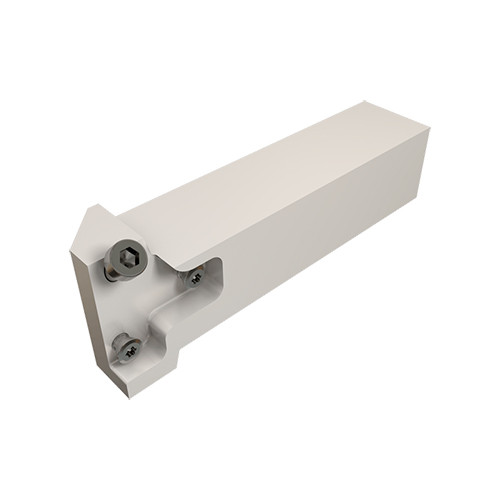

GHAL 25-8
External holders for grooving and turning with GADR/L and GAFG adapters.
| Cutting Depth Maximum (CDX) | 25.5 mm | Overall Length (OAL) | 124.5 mm |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Square Shanks |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
| Head Length (LH) | 45 mm | Unit | M |
Product Features
| Family Description | External holders for grooving and turning with GADR/L and GAFG adapters. | FamilyName | GHAR/L-8 |

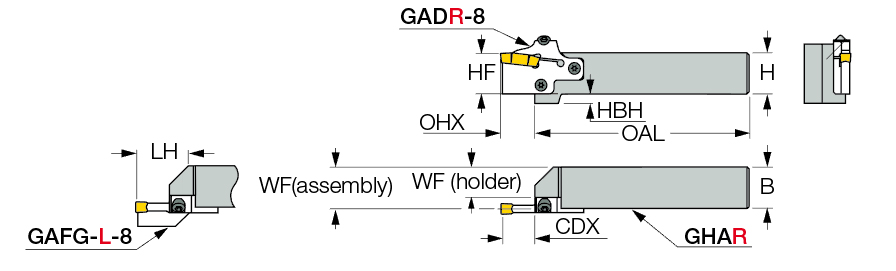

| Remarks | Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) WF(assembly)=WF(holder)+WF(adapter) (see adapter dimensions) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7270
Name
Groove/Turn Indexable Holders
FamilyName
GHAR/L-8
BrandName
Iscar
