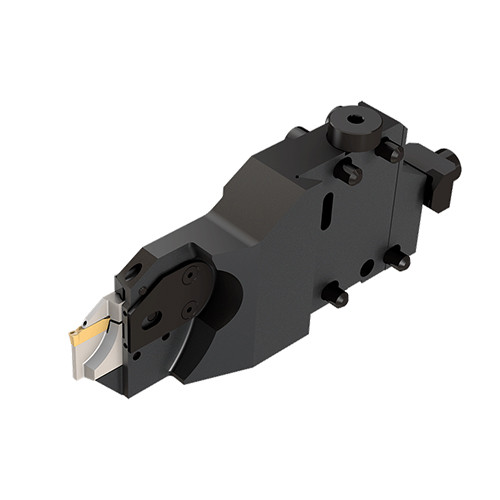

MS 18/22-MG-JHP
Toolholders for INDEX CNC multi-spindle machines with internal coolant supply for MODULAR-GRIP adapters.

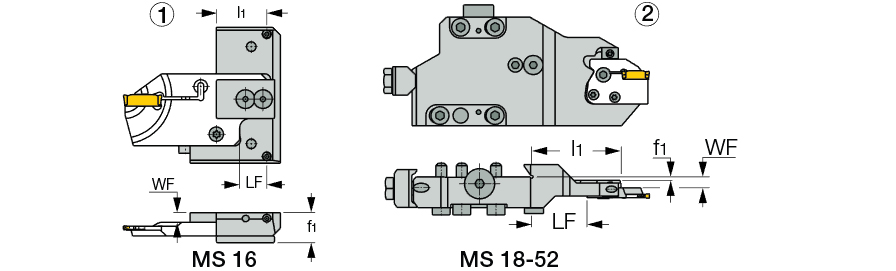

| Overall Length (OAL) | 67 mm | Measurement Type | Metric |
| Functional Length (LF) | 46.2 mm | Functional Width (WF) | 13.6 mm |
| Body Material | Steel | Tool Assembly Length (LTA) | 37.89 mm |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | Toolholders for INDEX CNC multi-spindle machines with internal coolant supply for MODULAR-GRIP adapters. | FamilyName | MS##-##-MG-JHP |

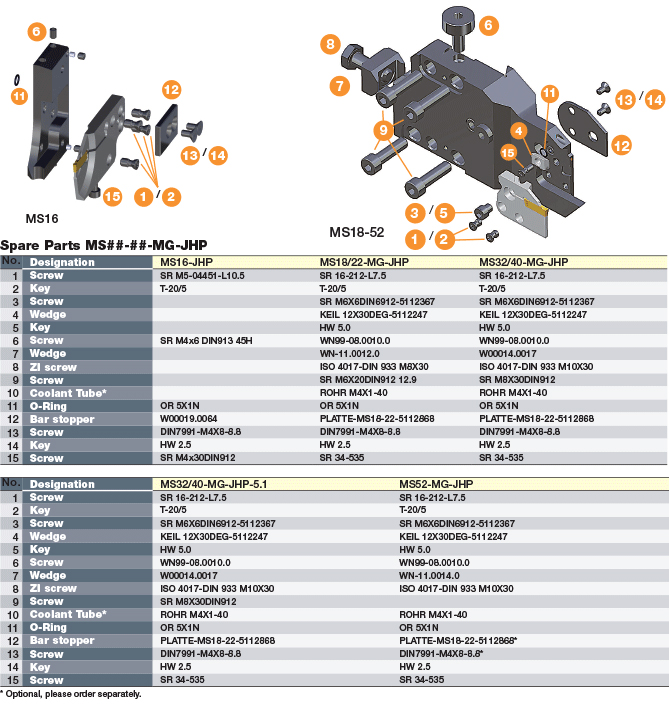

| Remarks | For assembly, spare parts and user guide, click on More Info All trademarks and logos are the property of their respective companies | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
1.4590
Name
Parting Off Indexable Holders
FamilyName
MS##-##-MG-JHP
BrandName
Iscar
