PCHR 25-27-15-JHP-MC

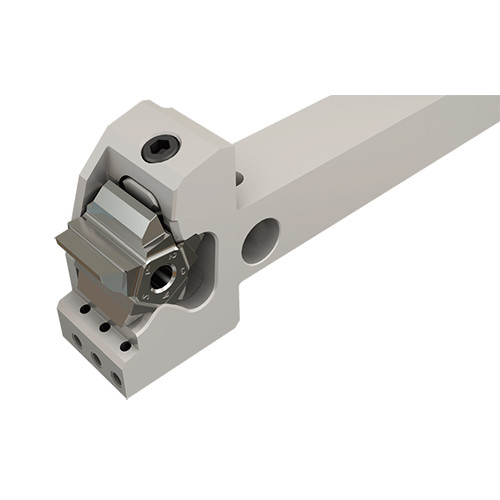

Tools carrying pentagonal wide inserts for specially tailored profiles.

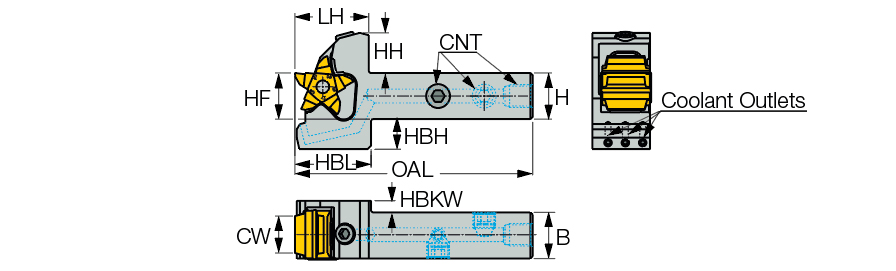

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 118 mm | Coolant Entry Thread Size (CNT) | G1/8 |
| Head Length (LH) | 32 mm | Head Bottom Offset Height (HBH) | 8 mm |
| Application | | Ext. Grooving | | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Tools carrying pentagonal wide inserts for specially tailored profiles. | FamilyName | PCHR/L-27-JHP-MC |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6870
Name
Parting Off Indexable Holders
FamilyName
PCHR/L-27-JHP-MC
BrandName
Iscar
