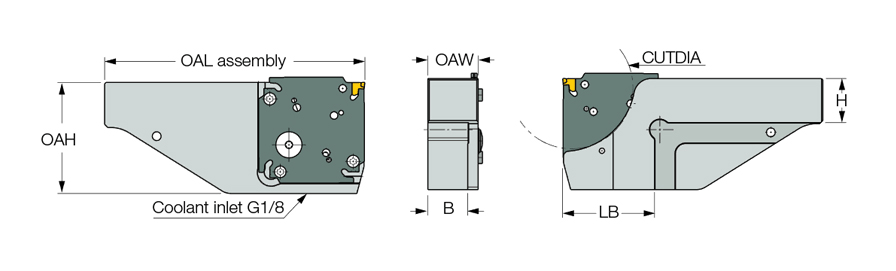

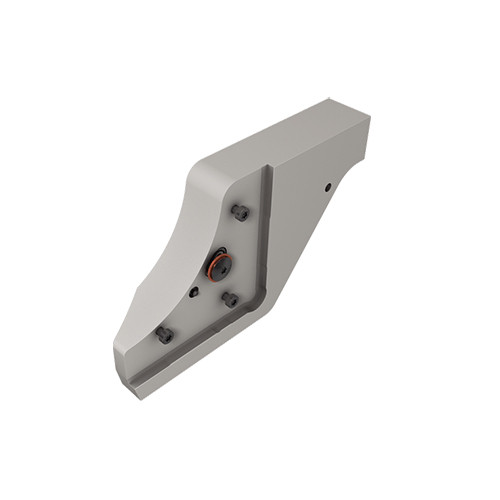

TGTBQ 20L-D82-JHP
Tool blocks for square TANG-F-GRIP and DO-F-GRIP parting and grooving adapters for high-pressure coolant
| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 140 mm | Coolant Entry Thread Size (CNT) | G1/8 |
| Overall Height (OAH) | 64 mm | Tool Assembly Length (LTA) | 8.7 mm |
| Body Material | Steel | Unit | M |
| Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
Product Features
| Family Description | Tool blocks for square TANG-F-GRIP and DO-F-GRIP parting and grooving adapters for high-pressure coolant | FamilyName | TGTBQ-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.9280
Name
Parting Off Indexable Holders
FamilyName
TGTBQ-JHP
BrandName
Iscar
