TGAQ D52-2-2Z-JHP

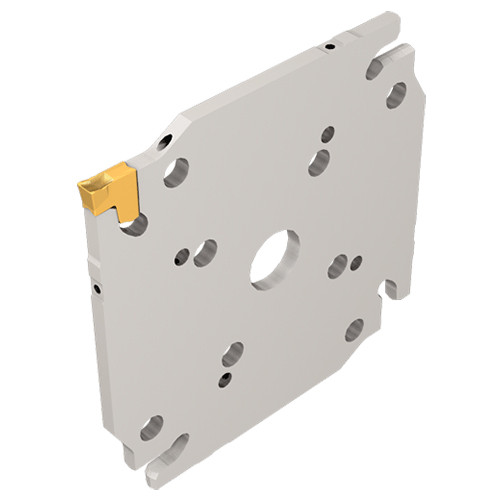

Parting and grooving square adapters with internal coolant holes carrying TANG-GRIP tangentially clamped inserts.

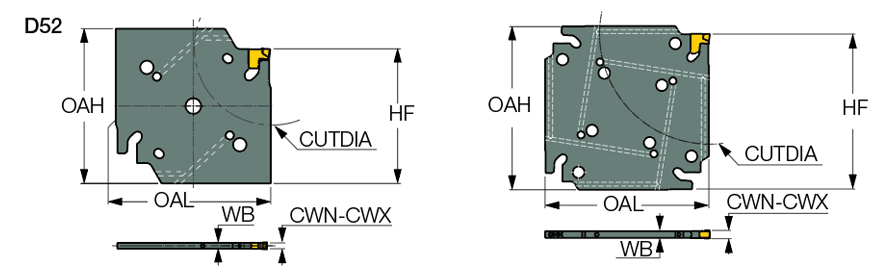

| Body Width (WB) | 1.65 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Overall Height (OAH) | 50 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Parting and grooving square adapters with internal coolant holes carrying TANG-GRIP tangentially clamped inserts. | FamilyName | TGAQ-JHP |
| Remarks | Suitable for all TANG-GRIP inserts D52 Adapters available with two pockets | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0610
Name
Parting Off Indexable Holders
FamilyName
TGAQ-JHP
BrandName
Iscar
