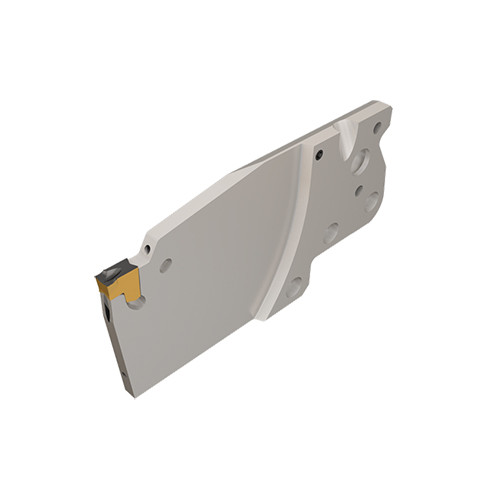

TAGPAD-XL 3L-D65-JHP
Extra long parting and grooving adapters with channels for high-pressure coolant carrying TANG-GRIP inserts

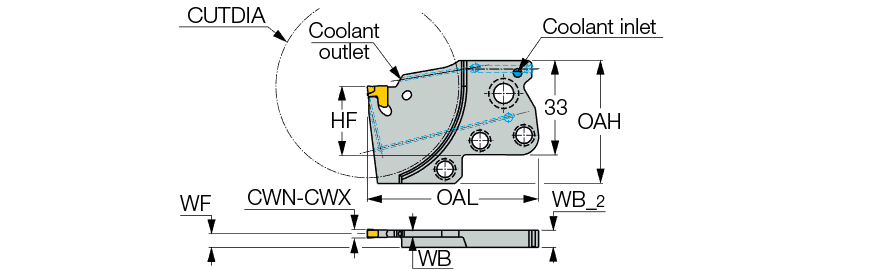

| Body Width (WB) | 2.4 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 2.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 65 mm |
| Cutting Width Maximum (CWX) | 3.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 59.9 mm | Measurement Type | Metric |
| Overall Height (OAH) | 43 mm | Body Width_2 (WB_2) | 6 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 68.32 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Extra long parting and grooving adapters with channels for high-pressure coolant carrying TANG-GRIP inserts | FamilyName | TAGPAD-XL-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0670
Name
Parting Off Indexable Holders
FamilyName
TAGPAD-XL-JHP
BrandName
Iscar
