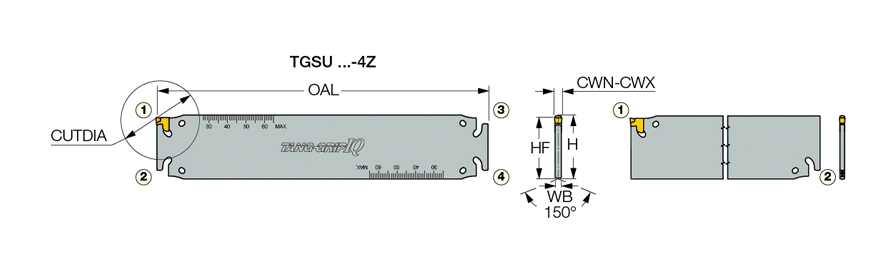

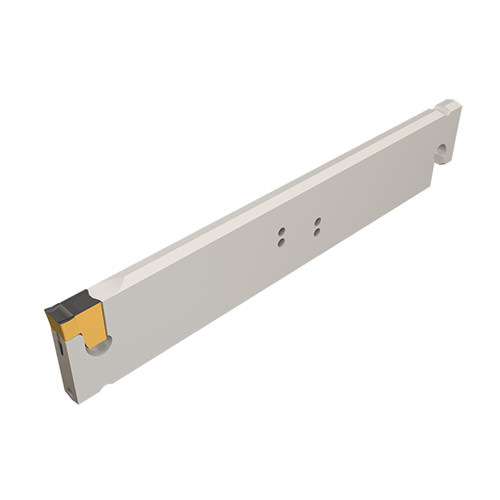

TGSU 35-3-IQ-4Z
Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. The blade features no upper jaw and a flat top, which allows for ZERO chip interference.
| Shank Height (H) | 35 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 2.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 120 mm |
| Cutting Width Minimum (CWN) | 2.8 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 3.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 180 mm | Body Width_2 (WB_2) | 2.5 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 60 mm |
| Number of Pocket (NOP) | 4 | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. The blade features no upper jaw and a flat top, which allows for ZERO chip interference. | FamilyName | TGSU |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1310
Name
Parting Off Indexable Holders
FamilyName
TGSU
BrandName
Iscar
