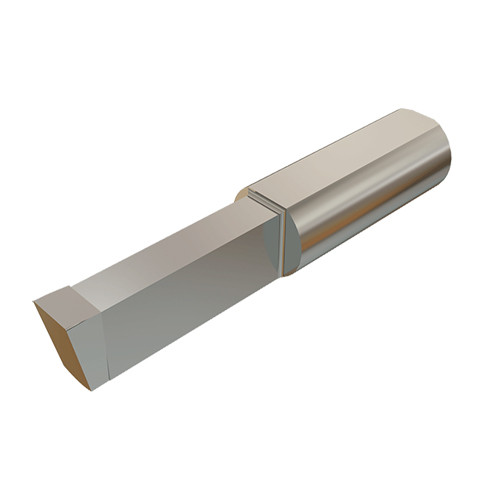

SCB 010.500.020-25 IC908
DIN6885 inserts for light fit (JS9) keyway broaching on lathe and milling machines.

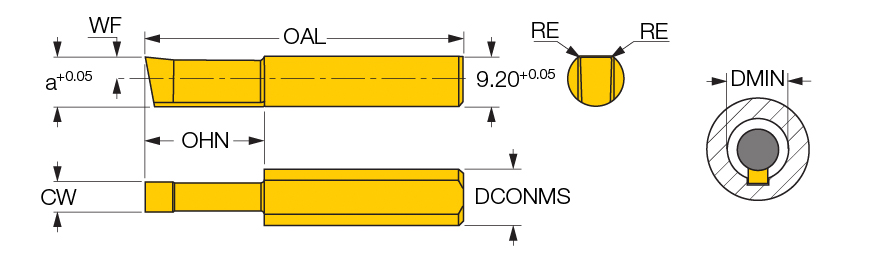

| Tool Type | Solid, Turning & Grooving | Overall Length (OAL) | 50 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Radius (RE) | 0.2 mm |
| Cutting Depth Maximum (CDX) | 5 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Width (CW) | 5 mm | Functional Width (WF) | 4 mm |
| Cutting Edge Material | Carbide | Minimum Bore Diameter (DMIN) | 10 mm |
| Grade | IC908 | Application | | Ext. Broaching | Int. Broaching | |
| Coating | TiAlN | Body Material | Carbide |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | DIN6885 inserts for light fit (JS9) keyway broaching on lathe and milling machines. | COO | Israel |
| Remarks | Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm |
Shipping Info
Weight per item
0.0490
