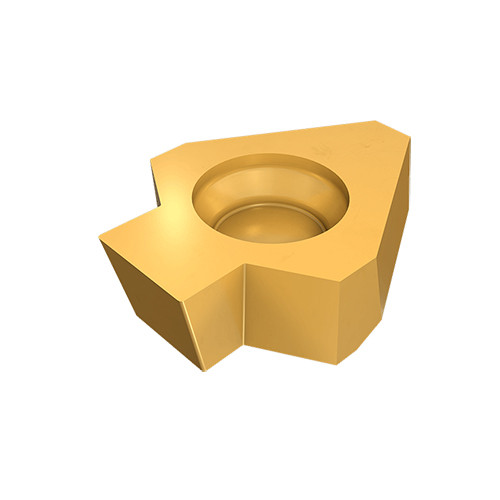

XNUWB 13-12.15-1.75 IC908
DIN138 (tolerance C11) inserts for keyway broaching on lathe and milling machines.
| Tool Type | Groove-Turn Utility Inserts | Measurement Type | Metric |

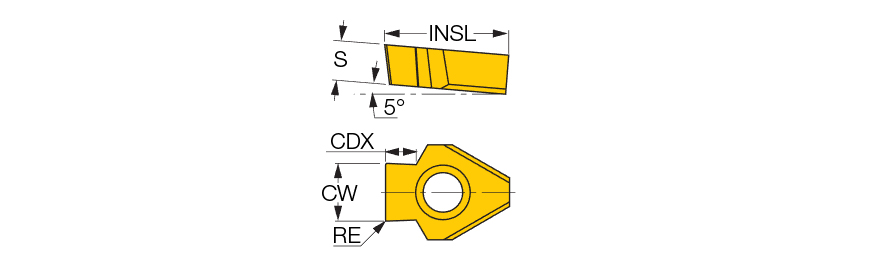

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Length (INSL) | 20.2 mm |
| Cutting Depth Maximum (CDX) | 6.6 mm | Insert Thickness (S) | 5.3 mm |
| Cutting Width (CW) | 12.15 mm | Corner Radius (RE) | 1.75 mm |
| Cutting Edge Material | Carbide | Application | | Ext. Broaching | Int. Broaching | |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | DIN138 (tolerance C11) inserts for keyway broaching on lathe and milling machines. | COO | Israel |
| Remarks | Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm |
Shipping Info
Weight per item
0.0154
