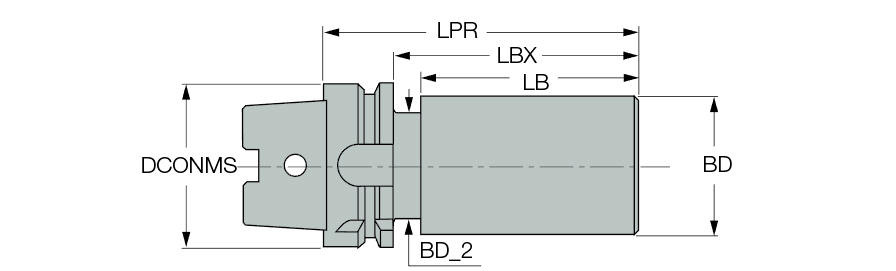

| Body Length (LB) | 155.5 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 200 mm | Body Material | Steel |
| Body Diameter (BD) | 63 mm | Unit | M |
| Tool Type | HSK -T (ISO 12164-3) |
Product Features
| Family Description | Blanks with HSK DIN 69893/A tapered shanks. | FamilyName | HSK A-B-MN (blanks) |
| Remarks | Material: Case hardened alloy steel, nose core hardness 22-30 HRC, nose surface hardness 57-60 HRC Tensile strength: min 760 Mpa For shank dimensions, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.8850
Name

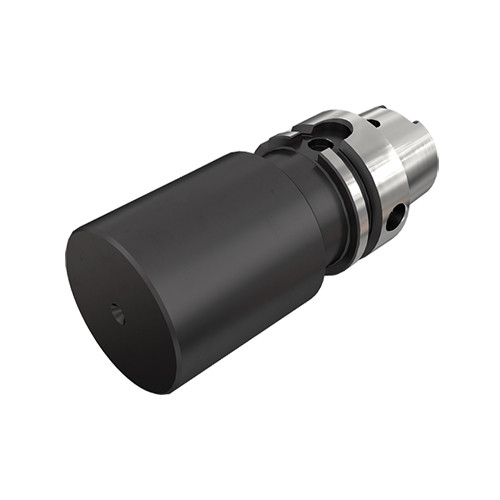

Tool Holder Blanks
FamilyName
HSK A-B-MN (blanks)
BrandName
Iscar
