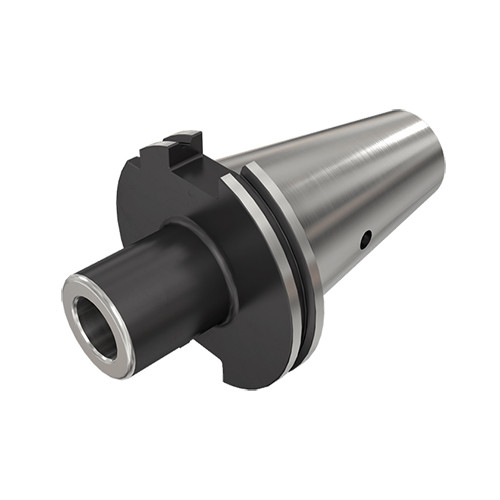

DIN69871 50 MT5 DRW
DIN 6364 Morse taper adapters with DIN 228-2 form B draw bar and DIN 69871 form A taper shanks.

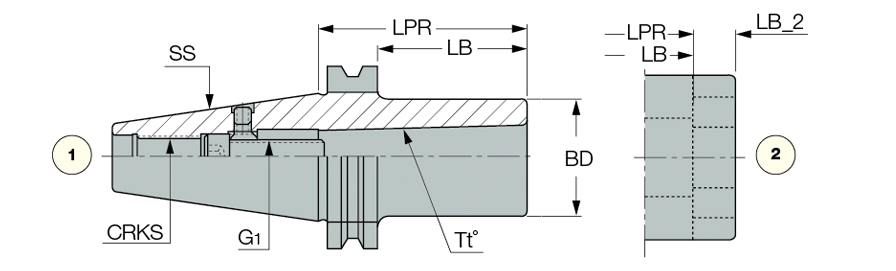

| Shank Size (SS) | 50 | Measurement Type | Metric |
| Protruding Length (LPR) | 118 mm | Body Material | Steel |
| Body Length (LB) | 98.9 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Connection Retention Knob Thread Size (CRKS) | M24 | Unit | M |
| Tool Type | DIN 69871 |
Product Features
| Family Description | DIN 6364 Morse taper adapters with DIN 228-2 form B draw bar and DIN 69871 form A taper shanks. | FamilyName | DIN69871-MT-DRW |
| COO | Turkey | BrandName | Iscar |
Shipping Info
Weight per item
4.8950
Name
Drill Chucks & Adapters
FamilyName
DIN69871-MT-DRW
BrandName
Iscar
