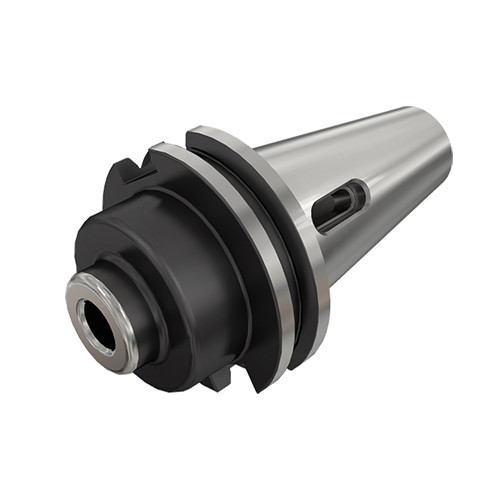

CAT50 MT 4X3.375
DIN 6383 Morse taper adapters with tang DIN228-2 form D and Caterpillar tapered shanks.

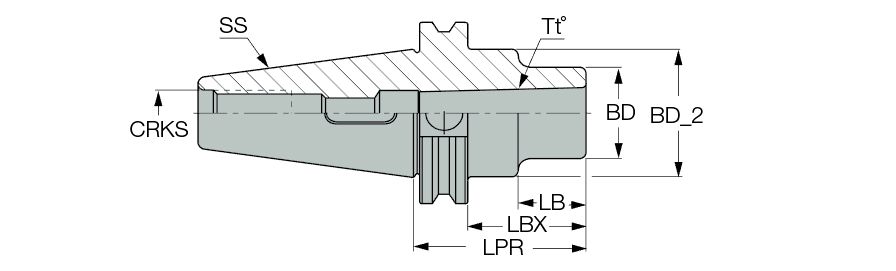

| Shank Size (SS) | 50 | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 3-3/8″ | Measurement Type | Inch |
| Body Length (LB) | 1.995″ | Body Material | Steel |
| Body Diameter (BD) | 2.752″ | Connection Code Machine Side (CCMS) | CAT |
| Connection Diameter Machine Side (DCONMS) | 50″ | Unit | I |
| Connection Retention Knob Thread Size (CRKS) | 1-8 |
Product Features
| Family Description | DIN 6383 Morse taper adapters with tang DIN228-2 form D and Caterpillar tapered shanks. | FamilyName | CAT-MT |
| COO | Turkey | BrandName | Iscar |
Shipping Info
Weight per item
7.3943
Name
Drill Chucks & Adapters
FamilyName
CAT-MT
BrandName
Iscar
