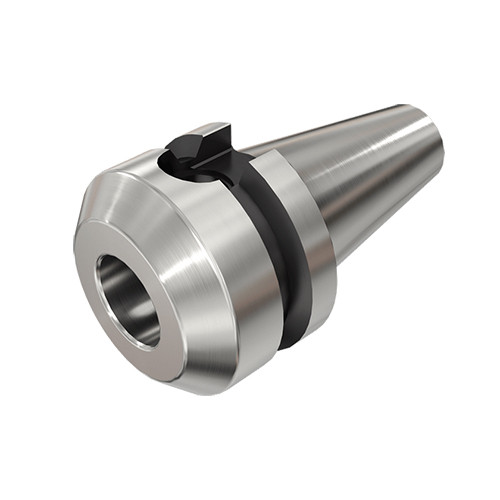

BT40 EM 25X 45
Short DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 AD tapered shanks.

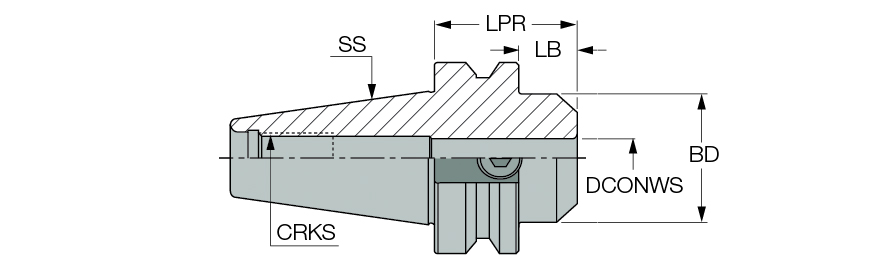

| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 63 mm | Tool Type | BT |
| Protruding Length (LPR) | 45 mm | Body Material | Steel |
| Overall Length (OAL) | 110.4 mm | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Short DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 AD tapered shanks. | FamilyName | BT-EM (Short) |

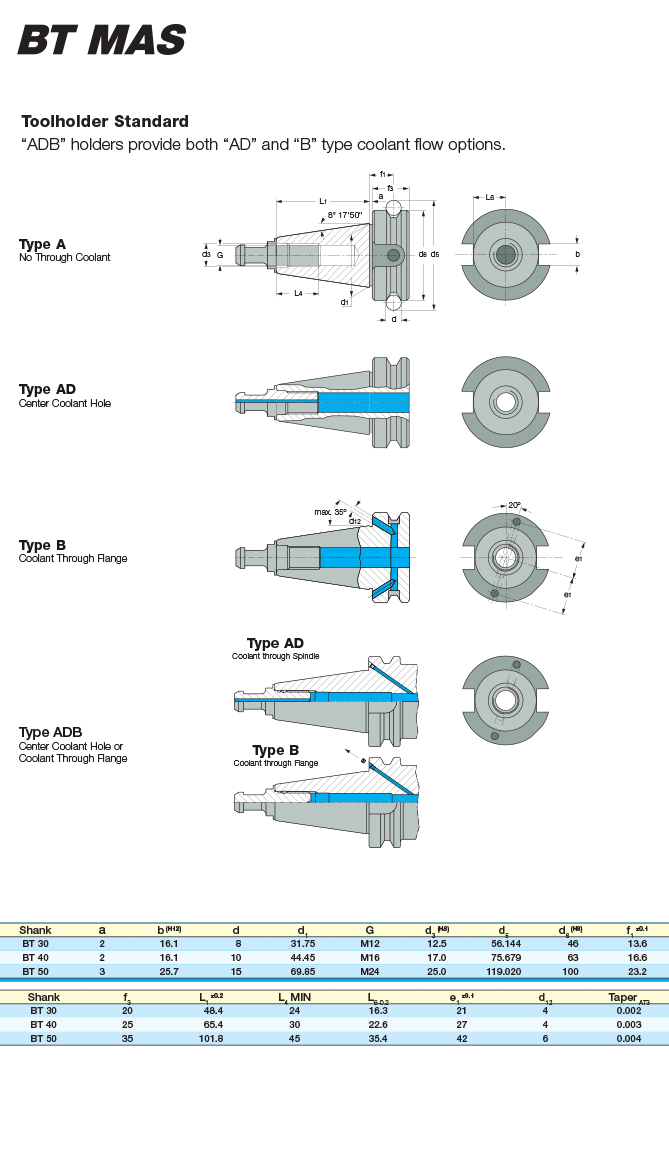

| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
1.1690
Name
End Mill Holders
FamilyName
BT-EM (Short)
BrandName
Iscar
