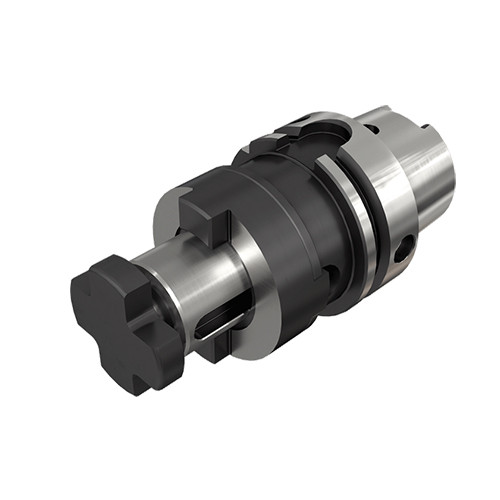

HSK A63 SEMC40X70
DIN 6358 COMBI shell mill holders with HSK DIN 69893 form A tapered shanks.

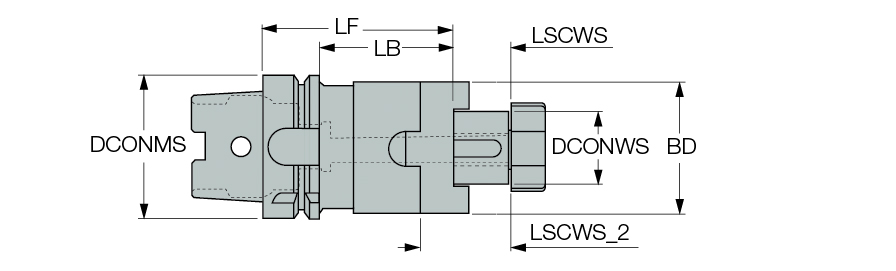

| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Measurement Type | Metric |
| Shank Size (SS) | 63 | Body Material | Steel |
| Functional Length (LF) | 70 mm | Connection Code Machine Side (CCMS) | HSK |
| Body Diameter (BD) | 70 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 27 mm |
Product Features
| Family Description | DIN 6358 COMBI shell mill holders with HSK DIN 69893 form A tapered shanks. | FamilyName | HSK A-SEMC |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). When mounting slitting cutters, remove the driving ring and use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For shank dimensions, Click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.1630
Name
Shell Mill Holders
FamilyName
HSK A-SEMC
BrandName
Iscar
