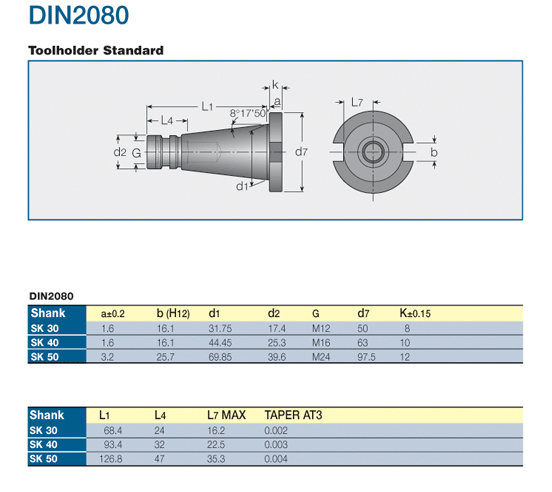

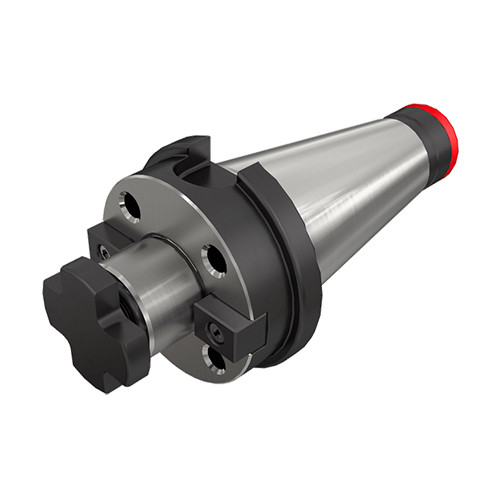

DIN2080 50 FM 40
DIN6357 face mill holders with DIN2080 A tapered shanks
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Tool Type | DIN 2080 |
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Functional Length (LF) | 36 mm | Body Material | Steel |
| Body Diameter (BD) | 66.7 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 27 mm |
Product Features
| Family Description | DIN6357 face mill holders with DIN2080 A tapered shanks | FamilyName | DIN2080-FM |
| Remarks | Peripheral clamping screws are not supplied. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.9260
Name
Shell Mill Holders
FamilyName
DIN2080-FM
BrandName
Iscar
