HSK FM63 SEM 3/4X4.50

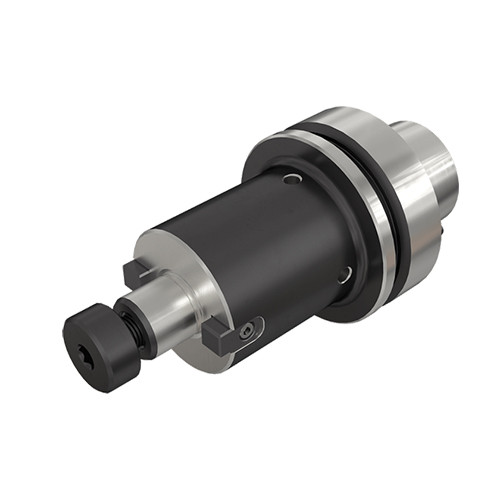

Shell mill adapters with HSK FM shanks, for MAKINO's machine models MAG. These HSK shanks feature two orientation pins for high speed machining of aluminum.

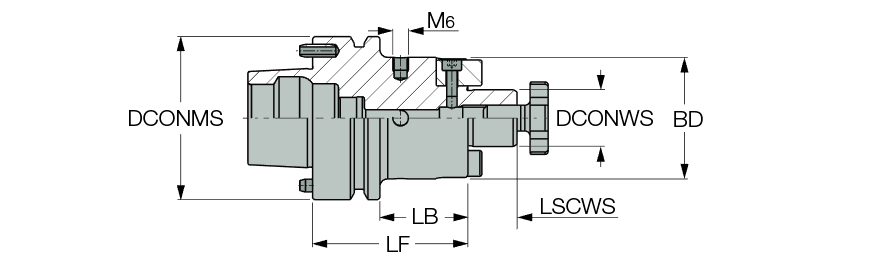

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Clamping Length Workpiece Side (LSCWS) | 0.669″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Tool Type | HSK |
| Shank Size (SS) | 63 | Measurement Type | Inch |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Body Diameter (BD) | 1.772″ | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | External | Unit | I |
Product Features
| Family Description | Shell mill adapters with HSK FM shanks, for MAKINO's machine models MAG. These HSK shanks feature two orientation pins for high speed machining of aluminum. | FamilyName | HSK FM-SEM |

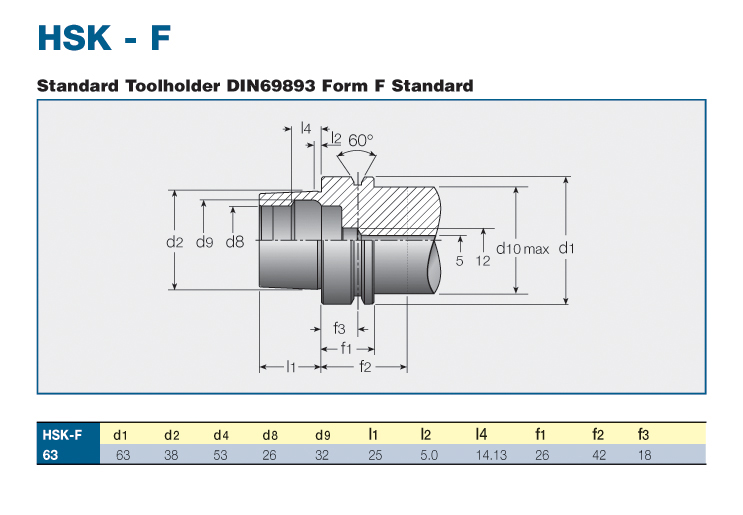

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) The orientation pins can be removed, turning the toolholder into a standard HSK F63 type | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.1006
Name
Shell Mill Holders
FamilyName
HSK FM-SEM
BrandName
Iscar
