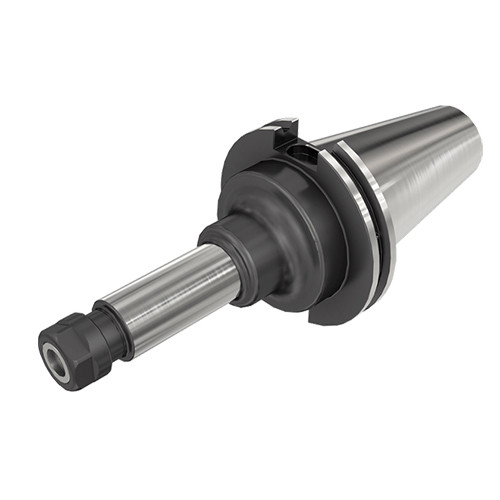

CAT50 ER32X4.000
DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks

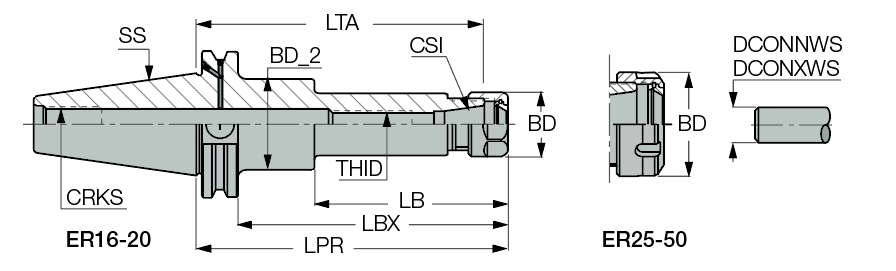

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Body Diameter (BD) | 1.968″ | Measurement Type | Inch |
| Protruding Length (LPR) | 4″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Tool Type | DIN 69871 | Unit | I |
Product Features
| Family Description | DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks | FamilyName | CAT-ER (form ADB) |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
8.2717
Name
Collet Chucks
FamilyName
CAT-ER (form ADB)
BrandName
Iscar
