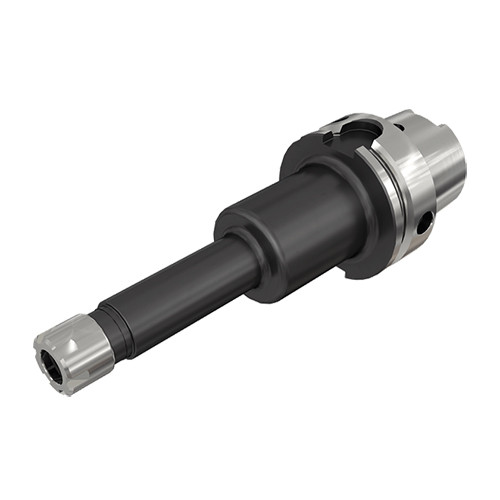

HSK A63 ER16X120M
DIN6499 ER mini collet chucks with HSK DIN69893 form A tapered shanks.

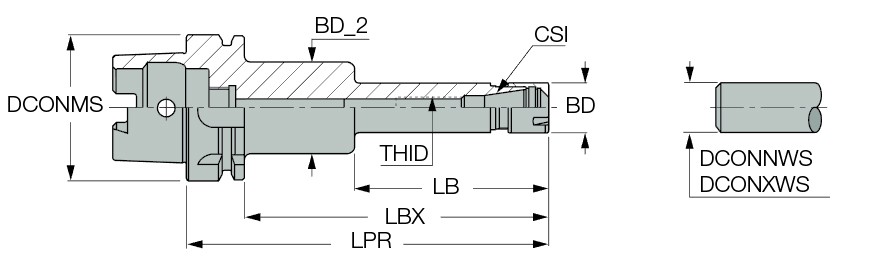

| Shank Size (SS) | 63 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Size (CSI) | ER16 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Diameter (BD) | 22 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 120 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Unit | M |
| Tool Type | HSK |
Product Features
| Family Description | DIN6499 ER mini collet chucks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-ER-M (mini) |

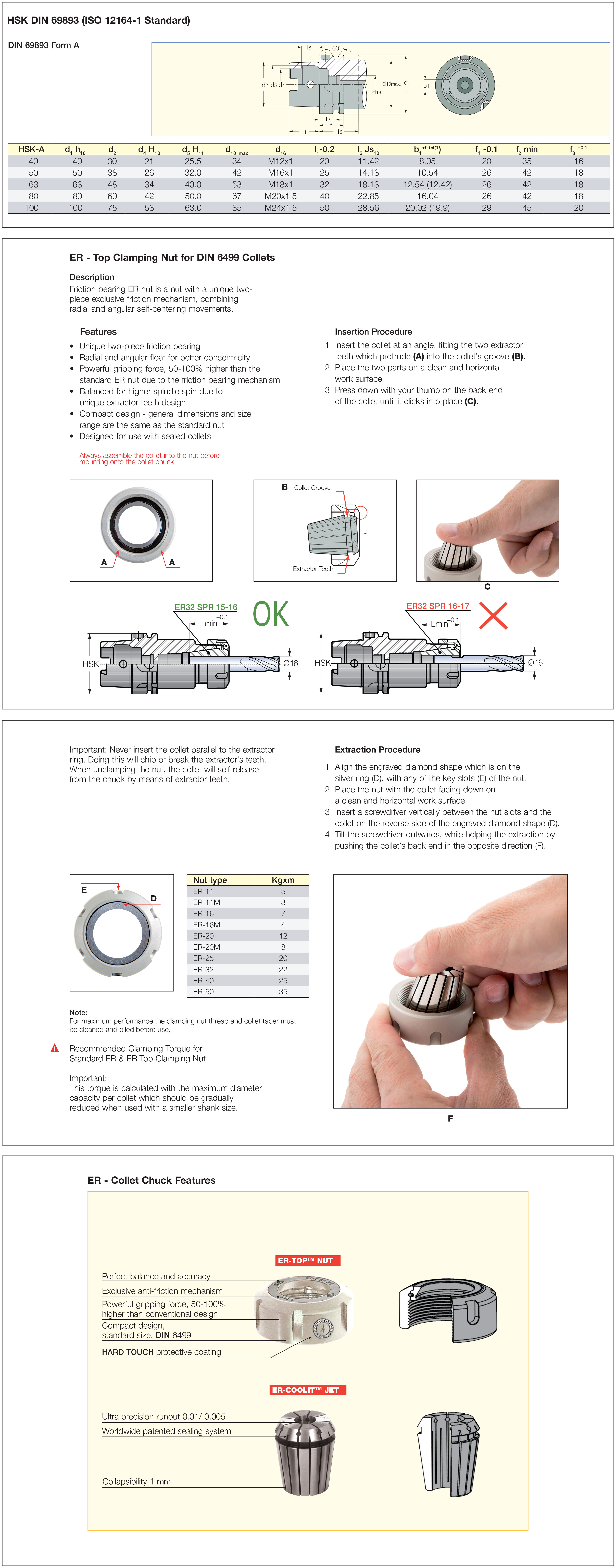

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0300
Name
Collet Chucks
FamilyName
HSK A-ER-M (mini)
BrandName
Iscar
