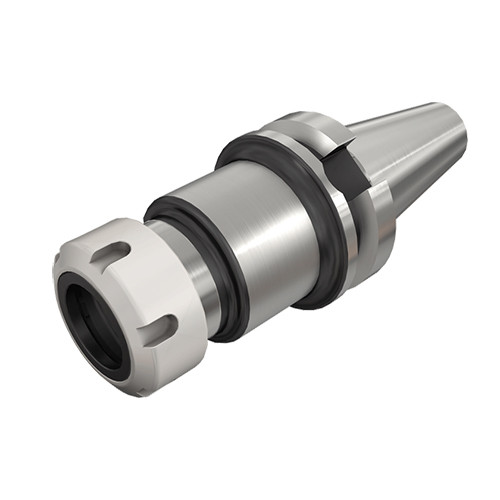

BT40 ER32X200
DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks.

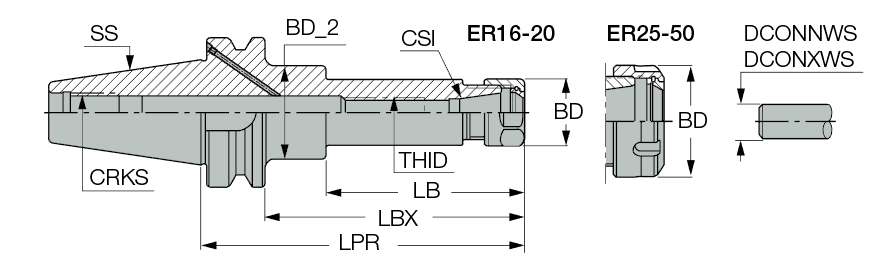

| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 200 mm | Body Material | Steel |
| Tool Type | BT | Unit | M |
Product Features
| Family Description | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | FamilyName | BT-ER |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
3.2990
Name
Collet Chucks
FamilyName
BT-ER
BrandName
Iscar
