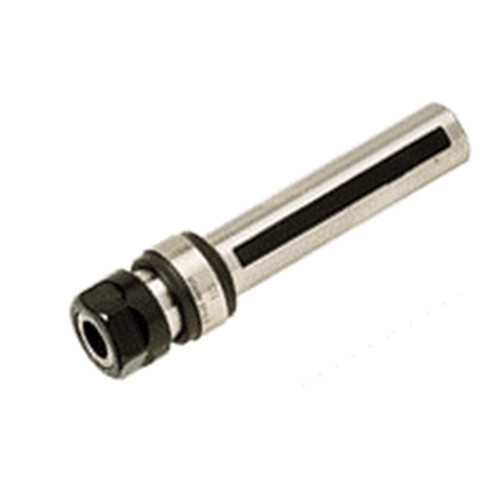

GTI ER40 ST. 1-1/4
DIN 6499 ER tapping attachments with straight shanks.

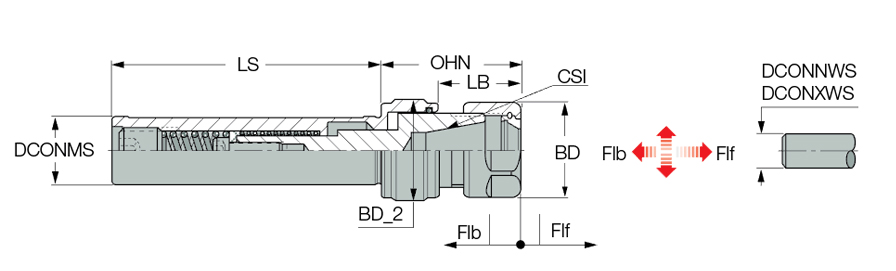

| Shank Size (SS) | ST1-1/4 | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Diameter (BD) | 2.48″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Protruding Length (LPR) | 3.748″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Shank Length (LS) | 3.15″ | Unit | I |
Product Features
| Family Description | DIN 6499 ER tapping attachments with straight shanks. | FamilyName | GTI ER-ST (tapping) |
| Remarks | For Adaptation, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.8030
Name
Collet Chucks
FamilyName
GTI ER-ST (tapping)
BrandName
Iscar
