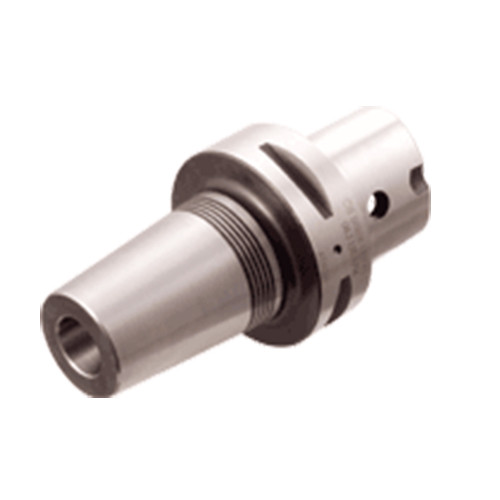

C5 SRKIN 12X75
Thermal shrink chucks with integral CAMFIX (ISO26623-1 standard) tapered shanks, for solid carbide, HSS and steel tools with h6 tolerance.

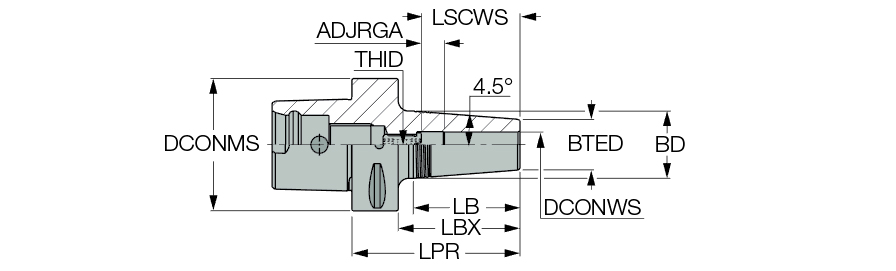

| Connection Diameter Machine Side (DCONMS) | 50 mm | Overall Length (OAL) | 105 mm |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Measurement Type | Metric |
| Shank Size (SS) | 50 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 51.3 mm | Body Material | Steel |
| Protruding Length (LPR) | 75 mm | Unit | M |
Product Features
| Family Description | Thermal shrink chucks with integral CAMFIX (ISO26623-1 standard) tapered shanks, for solid carbide, HSS and steel tools with h6 tolerance. | FamilyName | C#-SRKIN |
| Remarks | The adjustment screw has an internal coolant hole Use only inductive heating device for SRKIN holders For shrink units information, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7100
Name
Shrink Fit Holders
FamilyName
C#-SRKIN
BrandName
Iscar
