C6 SRKIN 3/4X3.35 CX

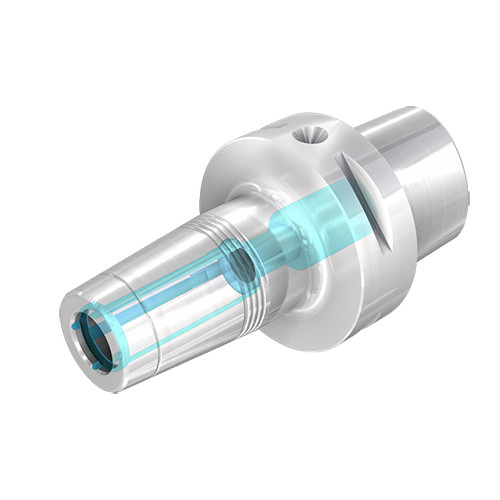

Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

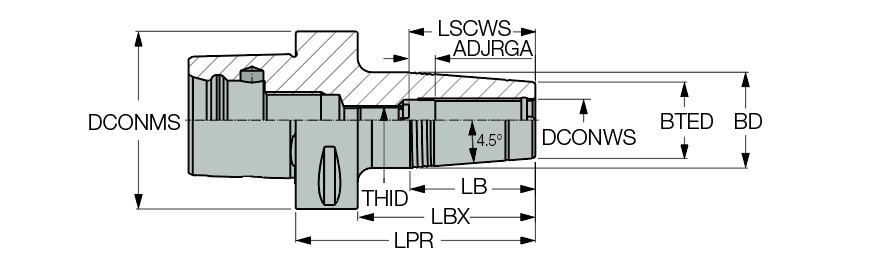

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Protruding Length (LPR) | 3.35″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Body Length Maximum (LBX) | 2.484″ |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 1.929″ |
| Body Length (LB) | 2.252″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.654″ | Body Material | Steel |
| Body Taper End Diameter (BTED) | 1.299″ | Unit | I |
Product Features
| Family Description | Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | FamilyName | C#-SRKIN-CX |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET groove - do not remove | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.7668
Name
Shrink Fit Holders
FamilyName
C#-SRKIN-CX
BrandName
Iscar
