CAT50 SRKIN 5/16X3.500 CX

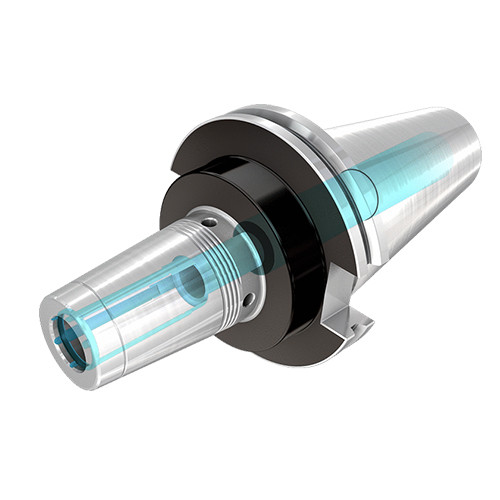

Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

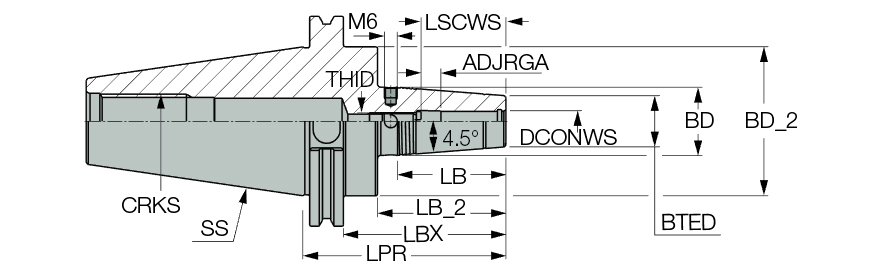

| Connection Diameter Workpiece Side (DCONWS) | 0.313″ | Protruding Length (LPR) | 3-1/2″ |
| Shank Size (SS) | 50 | Body Length Maximum (LBX) | 2.7″ |
| Body Length (LB) | 1.501″ | Clamping Length Workpiece Side (LSCWS) | 1.34″ |
| Body Length_2 (LB_2) | 2.12″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.063″ | Body Material | Steel |
| Body Diameter_2 (BD_2) | 2.752″ | Unit | I |
| Body Taper End Diameter (BTED) | 0.827″ |
Product Features
| Family Description | Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | FamilyName | CAT-SRKIN-CX |
| Remarks | Preset screw CX allows supply of coolant via JET groove - do not remove | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
7.2179
Name
Shrink Fit Holders
FamilyName
CAT-SRKIN-CX
BrandName
Iscar
