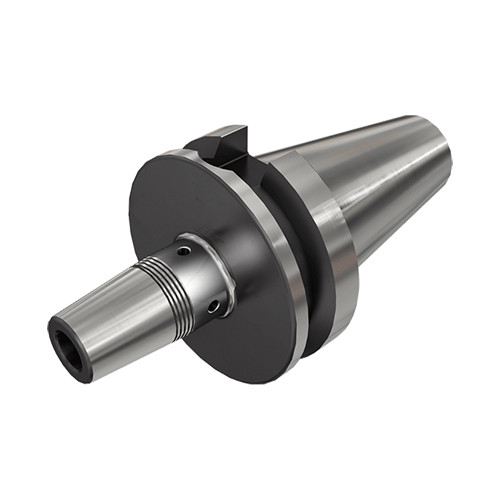

BT40 FC SRKIN16X90
Thermal shrink chucks with BT MAS-403 face contact AD tapered shanks, for solid carbide HSS and steel tools.

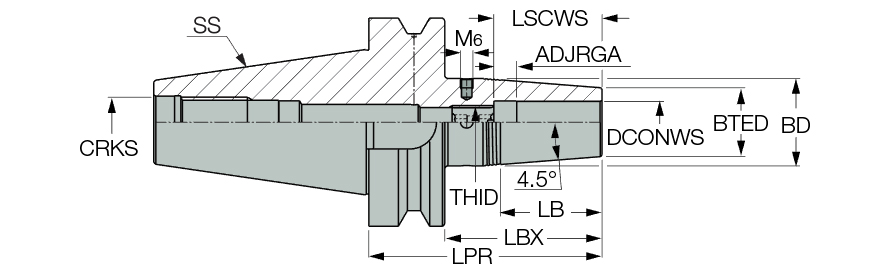

| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | BT |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Length (LB) | 44.5 mm | Connection Code Machine Side (CCMS) | BT |
| Protruding Length (LPR) | 90 mm | Unit | M |
| Overall Length (OAL) | 156.4 mm |
Product Features
| Family Description | Thermal shrink chucks with BT MAS-403 face contact AD tapered shanks, for solid carbide HSS and steel tools. | FamilyName | BT-FC-SRKIN |
| Remarks | Use only inductive heating device for SRKIN holders For adaptation details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3410
Name
Shrink Fit Holders
FamilyName
BT-FC-SRKIN
BrandName
Iscar
