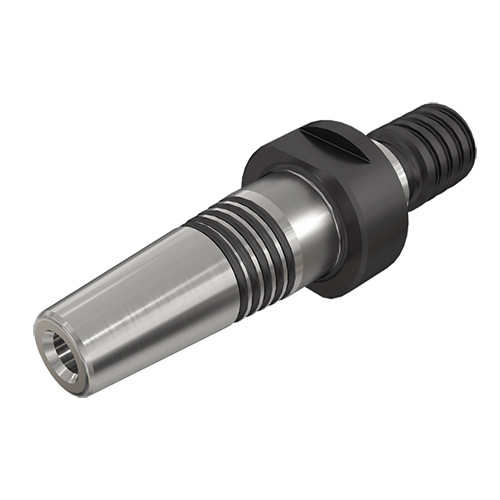

CDP M12 SRK 10X45
Thermal shrink chucks with FLEXFIT adaptation for clamping solid carbide endmills

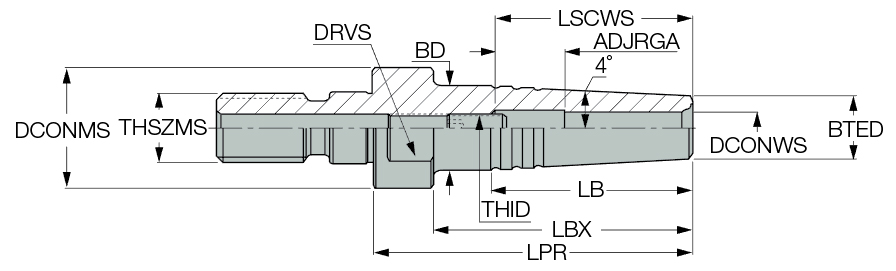

Connection Diameter Workpiece Side (DCONWS) | 10 mm | Drive Size (DRVS) | 17 mm |
Body Length (LB) | 35.6 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
Protruding Length (LPR) | 45 mm | Tool Type | Unique Adapter Milling System |
Overall Length (OAL) | 67 mm | Body Material | Steel |
Measurement Type | Metric | Unit | M |






Product Features
Family Description | Thermal shrink chucks with FLEXFIT adaptation for clamping solid carbide endmills | FamilyName | CDP M-SRK |
Remarks | To be used for carbide tools only. For Adaptation Click on More Info. When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
COO | Israel |
Shipping Info
Weight per item
0.0940
Name
Shrink Fit Holders
FamilyName
CDP M-SRK
BrandName
Iscar
