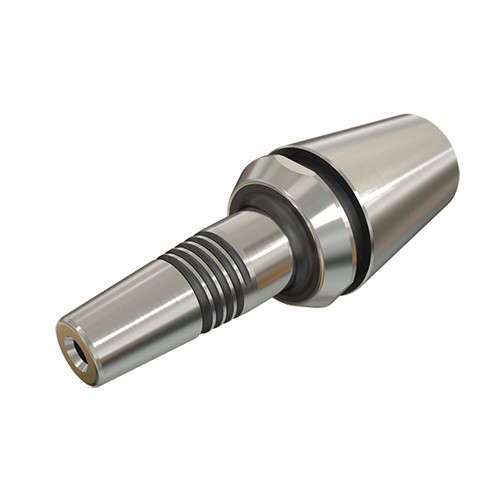

ER20 SRK 4X35
Thermal shrinking chucks with integral ER collet, for solid carbide tools only.

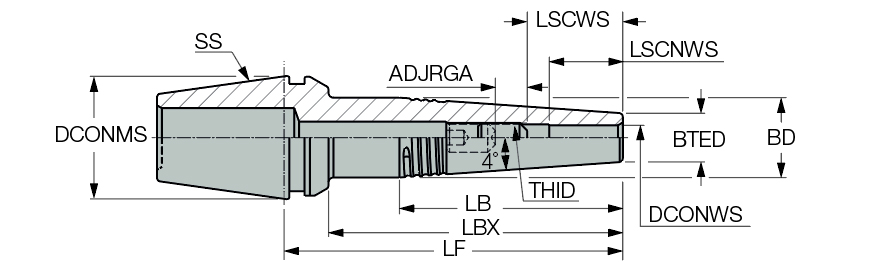

| Connection Diameter Machine Side (DCONMS) | 20 mm | Clamping Length Workpiece Side (LSCWS) | 18 mm |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Measurement Type | Metric |
| Shank Size (SS) | ER20 | Tool Type | Spring Collets |
| Body Length (LB) | 24.5 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 35 mm | Unit | M |
| Overall Length (OAL) | 66 mm |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet, for solid carbide tools only. | FamilyName | ER-SRK |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0860
Name
Shrink Fit Holders
FamilyName
ER-SRK
BrandName
Iscar
