ER32 SRK 8X35 CX

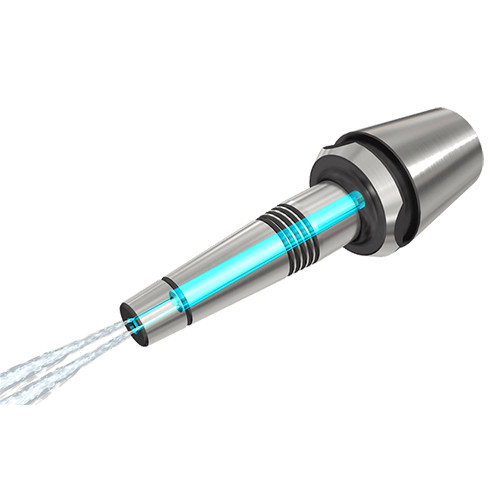

Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only.

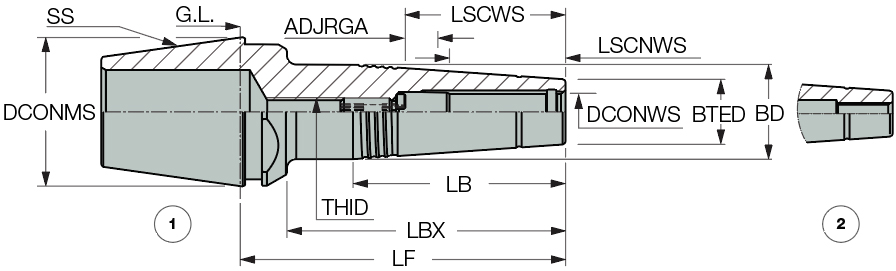

| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Length Maximum (LBX) | 35 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Clamping Length Workpiece Side (LSCWS) | 34.5 mm |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Diameter (BD) | 18.9 mm | Body Material | Steel |
| Body Taper End Diameter (BTED) | 14 mm | Unit | M |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | FamilyName | ER-SRK-CX |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2060
Name
Shrink Fit Holders
FamilyName
ER-SRK-CX
BrandName
Iscar
