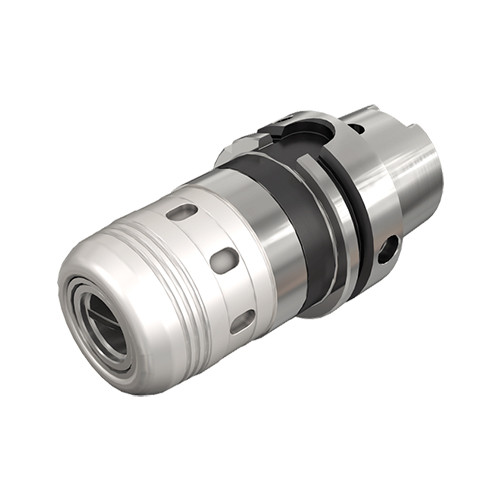

HSK A100 MAXIN1-1/4X5.31
MAXIN power chucks with HSK DIN69893 form A tapered shanks.

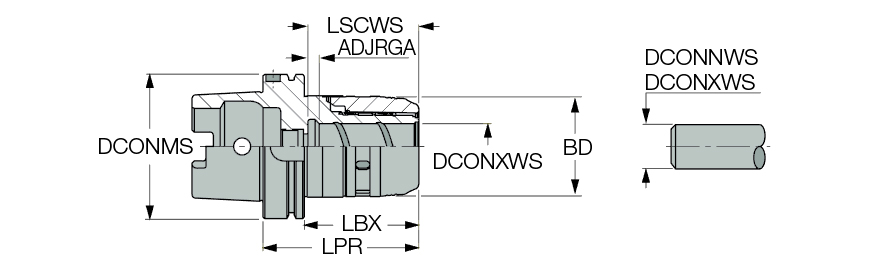

| Body Diameter (BD) | 2.717″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Protruding Length (LPR) | 5.315″ | Measurement Type | Inch |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Body Material | Steel |
| Shank Size (SS) | 100 | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK | Unit | I |
Product Features
| Family Description | MAXIN power chucks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-MAXIN |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. For shank dimensions, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
10.0773
Name
Milling Chucks
FamilyName
HSK A-MAXIN
BrandName
Iscar
