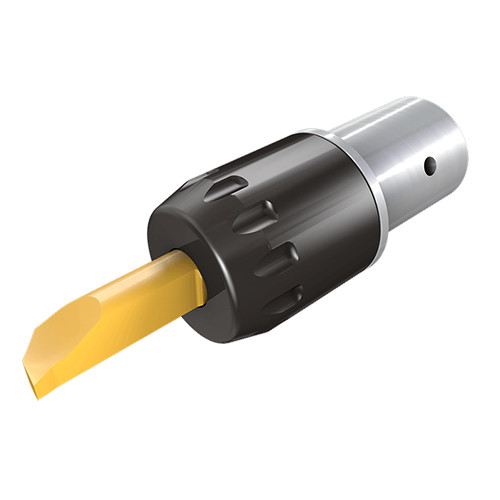

PICCO ACE-BH 16-6
Holders with short shanks for ITS BORE system, tools on which PICCO inserts are mounted. Extremely high clamping repeatability, superb rigidity and fast insert indexing.

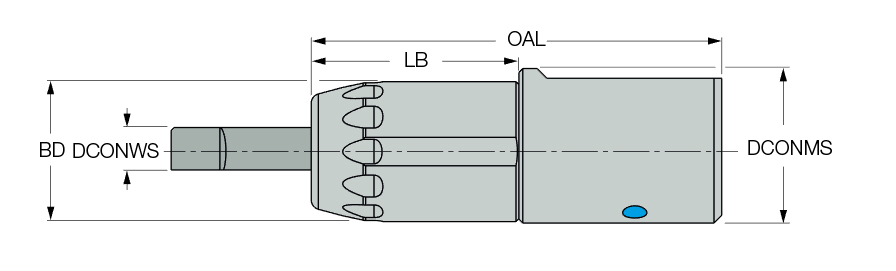

| Overall Length (OAL) | 43.5 mm | Tool Type | Round Shanks |
| Body Diameter (BD) | 19.9 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Holders with short shanks for ITS BORE system, tools on which PICCO inserts are mounted. Extremely high clamping repeatability, superb rigidity and fast insert indexing. | COO | Israel |
Shipping Info
Weight per item
0.1230
